Resilient UAV (Unmanned Aerial Vehicle) swarm operations are a complex research topic where the dynamic environments in which they work significantly increase the chance of systemic failure due to disruptions. Most existing SAR (Search and Rescue) frameworks for UAV swarms are application-specific, focusing on rescuing external non-swarm agents, but if an agent in the swarm is lost, there is inadequate research to account for the resiliency of the UAV swarm itself. This study describes the design and deployment of a Swarm Specific SAR (SS-SAR) framework focused on UAV swarm agents. This framework functions as a resilient mechanism by locating and attempting to reconnect communications with lost UAV swarm agents. The developed framework was assessed over a series of performance tests and environments, both real-world hardware and simulation experiments. Experimental results showed successful recovery rates in the range of 40%–60% of all total flights conducted, indicating that UAV swarms can be made more resilient by including methods to recover distressed agents. Decision-based modular frameworks such as the one proposed here lay the groundwork for future development in attempts to consider the swarm agents in the search and rescue process.

Introduction

The use of UAV swarms is becoming more widespread due to the reduced costs of UAVs and their ability to accomplish tasks more quickly and effectively as a group rather than individually. Advancements in aircraft design and control, communication topologies, and battery systems have made coordinated UAV swarms possible. The use of UAV swarms in applications of military [1, 2], ecology [3], remote sensing [4, 5], disaster management [6], crowd control, emergency communication [7], agriculture [8, 9], and victim search [10, 11] are just some of the use cases. As individual and multi-robotic development and their interaction with real-world entities advances, these applications are only limited because of a lack of improvement, a discrepancy that exponentially decreases as time passes. With the increased diversity of swarm usage applications, research in UAV resiliency has also grown [12, 13]. Due to the close-knit topology of these swarms, the failure of agents above a certain threshold can often lead to cascaded systemic collapse and a pause on mission progress. The cause of this failure may be structural, such as in a leader-follower topology, wherein the followers may get disconnected if the leader fails. Additional uncertainty in this failure also exists, such as the possibility of a failing swarm agent crashing into other agents during its collapse. Resiliency is defined as the ability of a system to withstand disruptions. Broader definitions include the ability of a system to bounce back after a disruption [14]. D.D. Woods summarizes system resilience perfectly in its four core concepts [15]. They are resilience, such as rebound, robustness, extensibility, and adaptability. Previous work by the authors addresses systemic resilience in UAV swarms on a broader range by classifying UAV swarm operations into components and modules [16]. The resilience of UAV swarms is a complex topic that integrates multiple components of navigation [17], mapping [4], control [18], defensive and intrusion detection policies [19], agent welfare, and physical characteristics of the swarm agent [20] into an intricate system designed to create balance in a dynamic environment.

An MRS (Multi-Robot System) and a swarm are both concepts in robotics that involve the coordination and interaction of multiple robots. However, they have distinct differences in organization, control, and behavior. An MRS has a structured and explicit interaction scheme with a centralized control. Swarm agents, on the other hand, are more decentralized and self-organized. There might not be explicit communication between robots, and collective behavior emerges from simple interactions between individual robots following local rules.

Additionally, MRS may involve centralized controllers and planners to assign tasks to robots. Swarms rely on local interactions and distributed control. Each robot can typically make decisions based on its immediate surroundings or information gathered from nearby agents. This also involves a degree of autonomy in decision-making from completely autonomous to semi-autonomous. However, while swarms are expected to be inherently scalable, there is an ongoing debate on the minimum number of agents that must be present and acting collectively to label it as a swarm. Adding more robots to a swarm does not necessarily increase performance. Selecting the number of agents in a swarm has long been contested. However, approaches with agents as few as five and as many as 1,000 have been implemented and studied. Article [21] discusses how aspects such as system scalability, technical capabilities of individual agents, and financial or logical constraints influence the selection of the number of agents in the swarm.

These factors were crucial in selecting the number of agents for swarm response experiments performed in this study. The number of agents available for experimentation was limited. Additionally, some agents were designated as reserve and spare agents to ensure experiments continued in case of equipment failure. Space constraints allowed only a certain number of agents to fly in the designated airspace without the risk of agent collision and crashes due to induced airflow interactions. While all communication between agents was performed decentralized, primary communication and network protocols required for communication with GCS limited the number of agents connected to them.

Search and Rescue is a vast domain; focusing only on swarm agent welfare significantly narrows it. However, to concentrate results further, this SAR framework will be primarily described for exploratory swarm applications. Scenarios where a swarm of agents may be deployed over an area and, in the process, may lose contact with the swarm is the priority. This narrows down the framework focus as well as experiment design and validation. Two major types of SAR capabilities in UAV swarms are defined and categorized here. They are application-specific SAR [22] and swarm-specific SAR (SS-SAR). Although our study takes a different direction than a regular application-focused SAR use scenario, it remains an exploratory problem. The tracking, location, and Rescue of disabled swarm agents require other agents of the swarm to actively search the target space for the agent using techniques such as triangulated localization, computer vision, sensors on the ground, and the analysis of system-generated mission logs. A literature review reveals that most swarms lack the self-awareness needed to actively take care of their agents. More robust mechanisms for the welfare of UAV swarms [23] are needed as an additional means to increase systemic resilience.

To build robust applications and routine case scenarios that use UAV swarms, the swarm itself must be resilient to disruptions. Towards this goal concerning SAR swarm operations, the significant contributions of this paper are:

- A literature analysis that reveals a research gap in UAV swarm development related to the search and rescue of their agents.

- To address this gap, a novel UAV swarm framework, SS-SAR (Swarm Specific-SAR), is introduced to provide the ability to track, locate, and possibly rescue their agents. The framework uses a decentralized approach and local communication between neighboring agents and surrounding data to make semi-autonomous deployments of rescue craft that initiate direct communication with distressed agents.

- Experimental results show the SS-SAR framework’s ability to reduce agent loss in swarm operations.

- Future framework upgrades and experiment designs are proposed to increase operational swarm resilience.

Using a decentralized approach for communication and agent decisions, this study aims to demonstrate scalable and robust responses of swarms to disruptive scenarios along with further scope for possible emergent behavior to avoid them altogether based on broad programmed constraints. The paper is arranged in the following way. Section Introduction gives a brief introduction of the area with research contributions of this study. Section Summary of Recent Literature on Multi-Robot SAR presents a categorization of current trends. Section Swarm-Specific SAR Framework presents the SS-SAR scenario description and framework workflow. Section Performance Tests describes both hardware and simulation performance tests and environmental parameters. Section Results presents the experimental results of the new SS-SAR framework. Section Discussion and Future Research Directions provides future directions to approach the problem with suggested framework upgrades, and Section Conclusion provides concluding statements.

Summary of Recent Literature on Multi-Robot SAR

The multi-UAV SAR problem is a broad problem domain. This section categorizes current research into three distinct approaches. Table 1 identifies research on the topic and categorizes the study as application or swarm-specific problems. Application-specific SAR (AS-SAR) and SS-SAR are the two categorizations previously discussed. Depending on how the SAR problem is approached, a third category is also included: Search Methodology Focused (SMF). Research in this category does not have a specific search target type; instead, the focus is on the general SAR methodology, where any internal or external search target can be assigned.

TABLE 1
www.frontiersin.org

TABLE 1. Summary of recent work on SAR using multi-agent UAV swarms categorized by approach.

As one can see from Table 1, swarm-specific implementations are less explored in the literature. In addition to the above literature review, generalized methodologies exist that propose novel approaches that would improve facets of the SAR process. These include using bio-inspired algorithms for area coverage [42] formation tracking [43] and environment exploration [44], updated and merged observation maps or information exchange pathways [45], and efficient task planning [46, 47]. Frameworks such as [41] that propose automatic replacement of lost UAV agents are scarce. This example fits perfectly in this paper’s proposed swarm-specific research category. To keep the literature analysis attainable, any approaches that do not directly describe the use of aerial vehicle swarms in the field for SAR have been eliminated. This includes broader research topics such as using machine learning methods to improve object recognition in aerial images taken by UAVs [48].

Swarm-Specific SAR Framework

Workflow Description

Notations used in framework description and development are summarized in Table 2. This section briefly describes the broad workflow for the framework design process.

TABLE 2
www.frontiersin.org

TABLE 2. Notations.

The SS-SAR workflow [49] is summarized in Figure 1. It is divided into four sections, with the first section defining the agent tracking phase, the second section containing the initial decision, section three having the primary decision process, and section four with the secondary decision process. The modular framework design assists in the testing and modification of one or more sections. This was especially useful in scenarios where the hardware and software test platforms could not simultaneously handle all the framework tests computationally or physically. For example, low-cost agents such as the DJI Tellos [50] used in the lab scenarios required testing individual sections piecewise rather than the entire framework simultaneously due to inefficient hardware and lack of sensors. The experiment section describes the modular experiments designed to test the workflow to the extent that the agents could handle it.

FIGURE 1
www.frontiersin.org

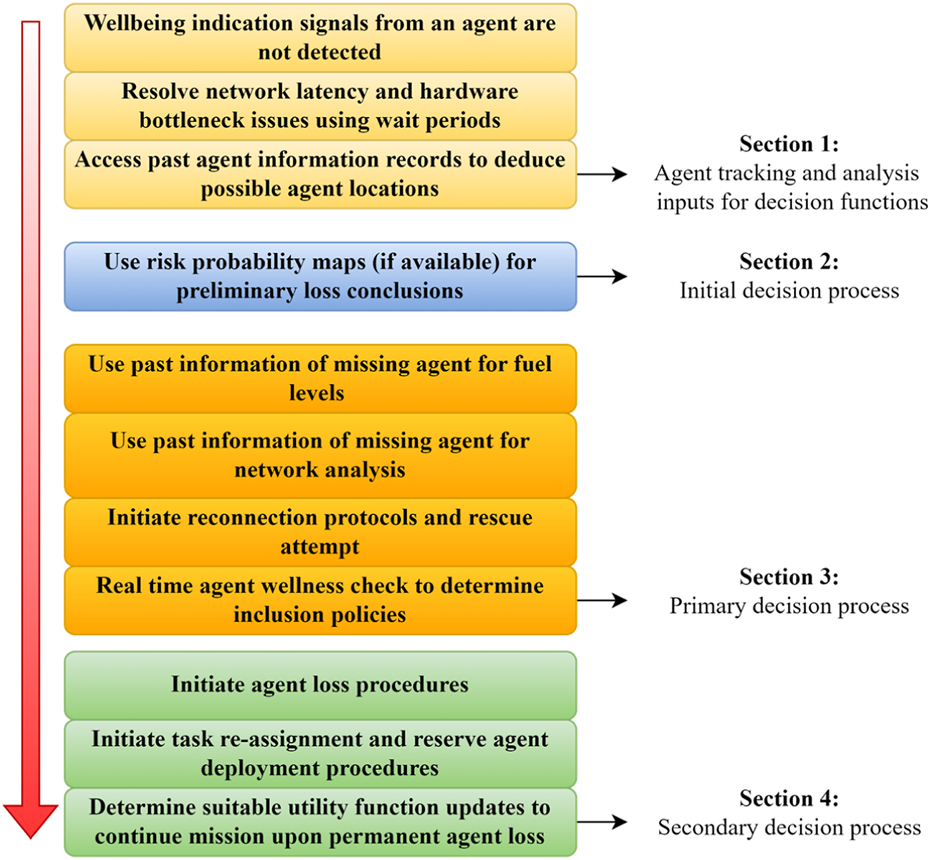

FIGURE 1. Workflow of the SS-SAR framework.

The second advantage of the modular nature is that framework components can be upgraded, optimized, or changed. For example, while preliminary experiments for Section Performance Tests use an essential task re-assignment policy where only idle agents are given the tasks previously assigned to the lost agent, future iterations of the framework can use an optimized cost consideration, where characteristics of the task-receiving agent, such as its remaining fuel, are considered before re-assignment. An agent completing its task is only assigned the task of the fallen agent if its battery capacity allows it. The indicator tkcost is used to determine the cost of completing the task that is estimated using the number of time intervals required t, and the expected change in battery level to complete the task, Δblevel.

Scenario Description

The generalized model in Figure 2 was expanded into a specific scenario where a swarm of agents is performing a task, and one of the agents is in distress. This SS-SAR process is depicted in Figure 2.

FIGURE 2
www.frontiersin.org

FIGURE 2. SAR process for rescuing an agent in distress.

The OLSR (Optimized Link State Routing) protocol has been extensively studied as an ideal routing protocol in SAR environments [51]. It routinely uses “Hello” and “Topology Control” messages to identify links and agent states. The heartbeat signal is often referred to as a modified hello message based on the base OLSR protocol. The heartbeat signal transmission is a small, quick transmission objective signal that each swarm agent can send at regular intervals. Various alternate implementations exist [26, 41, 52]; however, they follow a general structure that includes information denoting network I.D., transmitting agent ID, destination I.D., message type, security I.D., data segments, and error check. The HBS comprises location information, the battery level of the agent, signal strength indication, and the current task I.D.

HBSi,k=Loci,k+blevel,i,k+SSIGC,i+tkid

A fixed number of agents, n, form the swarm. The HBS from every agent is expected after each time interval t, at a sample iteration denoted by k. An HBS is expected to be transmitted by every agent in the swarm after the time interval value of t. The signal is denoted by HBSi,k. This denotes the signal transmission from the ith agent at the kth time interval, in the range of i = 1 to n, and k > 0. The Ind binary variable indicates the presence or absence of the HBS signal for every Indi,k. The value of 1 is recorded for every signal received and 0 if a signal is missing. The missing HBS agent id value determines which agent did not send the signal. The Indall is a logical operator set to 1 if all agents send a signal and 0 if HBS from an agent is missing.

Time intervals t are regular spaced and defined for transmitting the HBS. Careful consideration of this assigned value is required. A higher value of t can cause fewer HBS to be transmitted during mission time, i.e., a greater amount of time can elapse between a missing HBS and the system realization of an agent in distress. However, a lesser value of t can cause network bottlenecks if the system cannot receive and process HBS from all agents of the swarm. Figure 3 shows HBS signal and sensor data transmission over a regular and disrupted time series. A longer period of HBS transmission intervals may result in delays between agent loss and system realization, 2t. The disrupted time series shows the information delay for sensor data access of an agent by the operator. Since sensor data is sent at less frequent intervals than the HBS, the operator has access to information that may not give an exact interpretation of agent distress if the disruption occurs after a significant time interval after the last sensor data transmission.

FIGURE 3
www.frontiersin.org

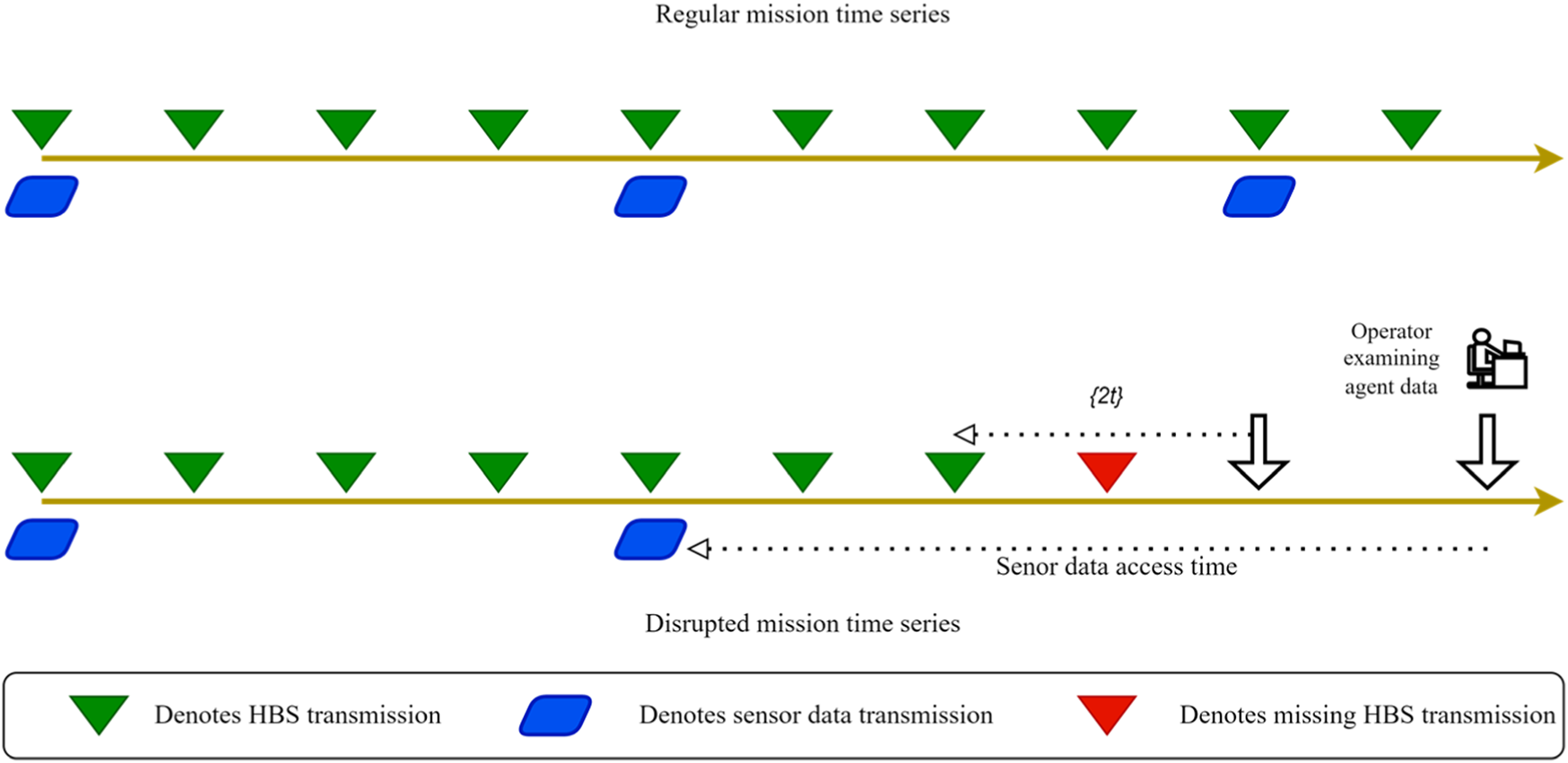

FIGURE 3. HBS transmission and usage for regular and disrupted mission time series.

If an agent is missing, its past HBS record is retrieved and examined for its location during that transmission time interval. This location information may be outdated by a minimum value of the system realization time, that is, 2t. A map overlay for known static obstacles is then used to determine if the agent was near obstacles during loss. A UAV agent can be distressed due to reasons such as collision with a static or dynamic obstacle, falling out of range from other agents in a mesh-based topology or with ground control in a directed topology, or issues with hardware components and fuel. Multiple pose checks are designed in the framework and conducted at each step to systematically eliminate the cause of disruptions. It is assumed that the agent, even when on the ground, has an open broadcast connection request to accept incoming connection requests from other agents or manual remote-control overrides. This feature is always present, even in basic agent builds. An agent that is connected to a network but has landed due to a collision, flock fragmentation, or getting stuck in an obstacle can still transmit an HBS with an on-ground indicator value of O.G. = 1. This indicates that an agent has landed but is still actively connected. However, this agent cannot be directly accepted back into the swarm. It is necessary to ensure that it can safely rejoin the swarm by gaining the necessary minimum altitude required by the agent to take a safe flight.

At specific decision points in the framework, agent status checks called pose checks are performed to gain additional information about the agent. The framework can perform three different checks: p0, p1, and p2. Pose check flow conducted at different times during framework operation is shown in Figure 4.

FIGURE 4
www.frontiersin.org

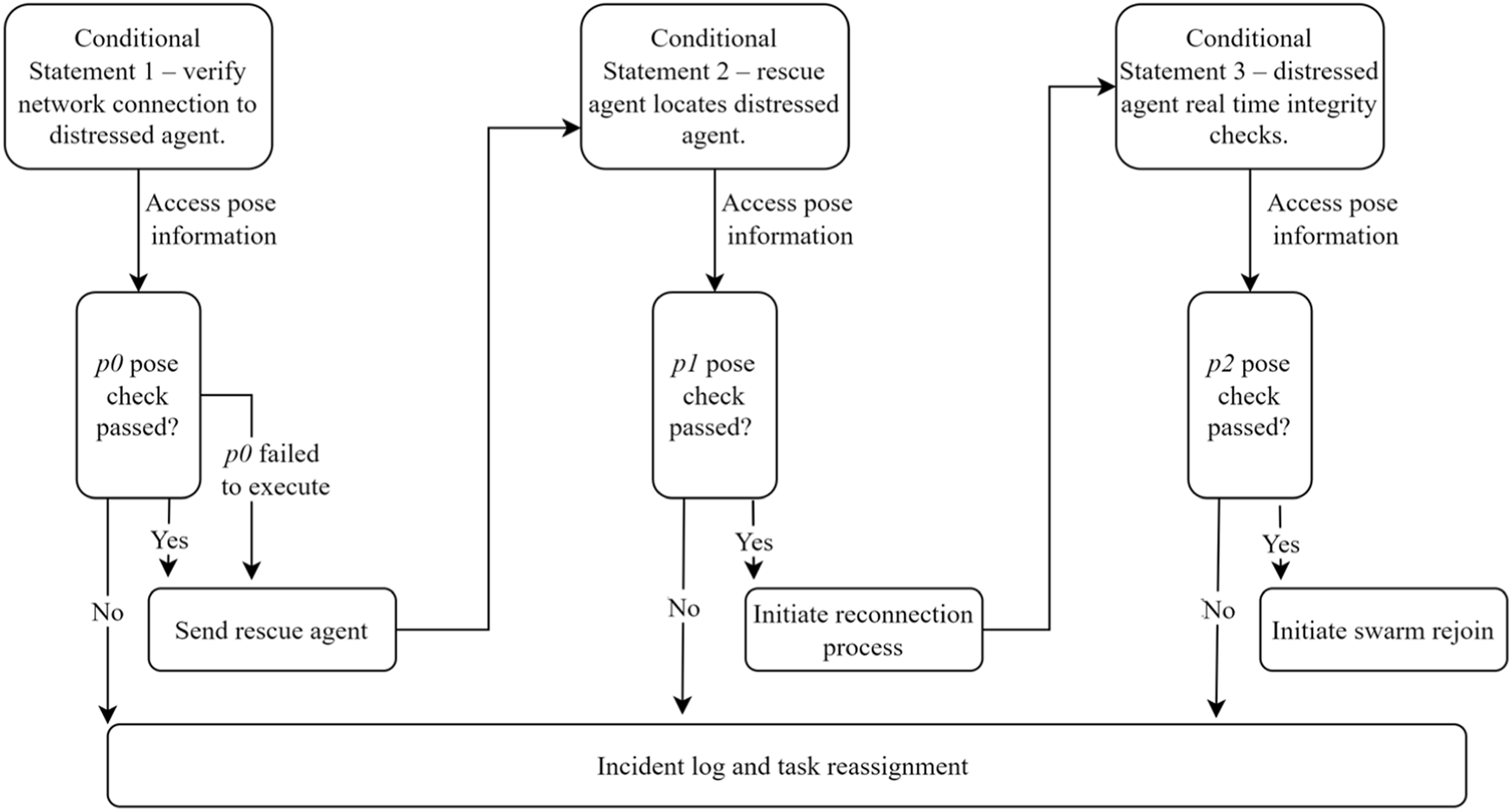

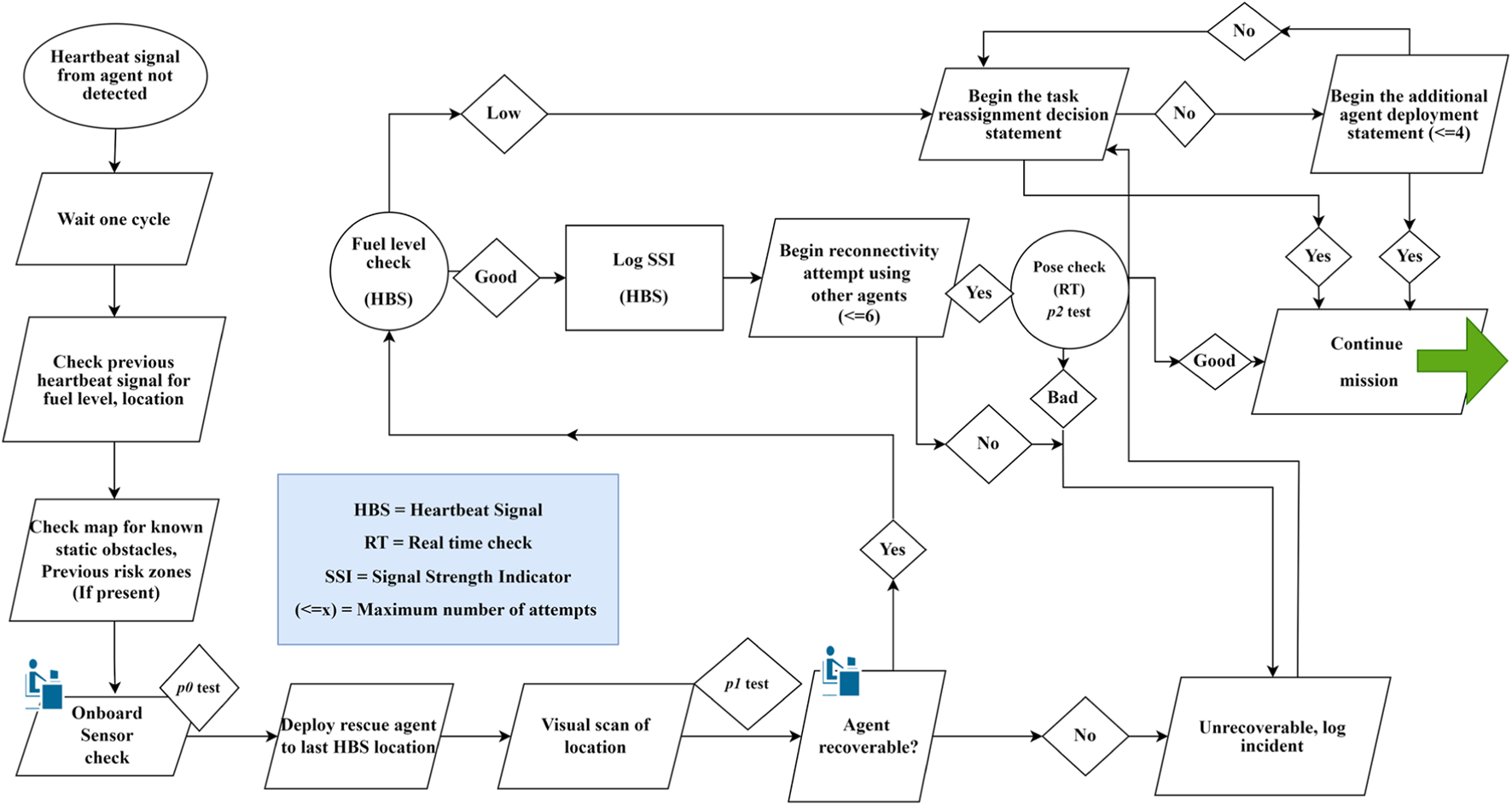

FIGURE 4. Pose check workflow.

Once an agent is realized to be in distress, an initial attempt is made to see if it is still possible to access its onboard vision sensor to conduct a preliminary pose check p0. This checks if the agent has landed in such a position that it may be able to take off safely. Examples of passed and failed p0 tests are shown in Section Performance Tests. The advantage of this method is that if the preliminary pose check fails, the framework can skip sending the rescue agent and directly move on to the unrecoverable agent process. However, this step is flexible: a rescue agent can still be deployed if the p0 check cannot be conducted.

If p0 passes, rescue agent R moves to the location of the missing agent (Rloc(i, k–1)) and performs a visual scan of the location. The operator conducts real-time viewing of the rescue agent’s camera data to conduct p1. After an agent is located, the p1 check using a rescue agent vision sensor is done to assess if the agent is in an environment from which it can take off safely. A fuel check using blevel and a network connection check using SSI(G.C., i) are then performed. The SSI value contains agent connection data with ground control and neighboring agents. Depending on the network topology selected, an SSI(G.C., i) value of 0 can be acceptable if the distressed agent connects to another agent rather than to ground control.

p2=(blevel>40%)ANDSSIGC,i>80%

This data is taken from the agent’s previous HBS to create record logs of why the agent failed. This information is used to create risk zones as an information overlay in mission maps, a framework feature designed to reduce the failure of future agent movements on the same map.

If p1 passes, the rcm messages are sent to reconnect with the agent. Once an agent is actively connected, a real-time pose check p2 is conducted, which checks the current agent fuel level and network connection. In higher-level agents, this check can also take feedback from individual components onboard the vehicle, such as autopilot and motor sensors, to check for hardware integrity and orientation. If this pose check is passed, the distressed agent is deemed capable of rejoining the swarm. If the pose check fails, a log is created, and the agent’s location is marked with an overlay that denotes the perceived reason for failure. A task re-assignment policy is then initiated to reassign the task of the lost agent to other swarm agents.

To date, probability maps have been a prevalent approach in SAR problems. Global or local maps are proposed that decompose ROI in grids [40], and a probability rate of the target being in each of the cells is calculated. Agents are encouraged to explore cells with a higher probability rating of the target being present in them. Similar approaches have been examined in [31] where agents not only create and maintain observation map history, but maps from neighboring agents can also be combined. A similar logic is used in this case, where ground control creates and maintains a global risk map where each cell has an associated risk value. This is based on location data of previous agent loss, where an incident log is created every time an agent is lost in a particular area in the same map. This is especially useful in same-area routine flight scenarios where UAVs must visit the same area multiple times. Labeled hotspots can then be used as additional input constraints to path-generating algorithms by assigning proportional weights to high-risk zones, which the planning algorithms can then avoid or have issue mitigation resources ready if those areas are unavoidable.

Pose and orientation calculation can be upgraded with optimization loops coming from additional input sources. For example, the vision sensor data of the distressed UAV can be accessed, and an automatic pose orientation of the UAV can eliminate the need to dispatch a rescue UAV if the fallen UAV sends an unrecoverable camera pose. This was demonstrated during various experiments in which a human in the loop could access the sensor information of the distressed UAV to deduce its orientation. If determined to be unrecoverable, the agent’s location is marked for post-mission recovery trials, and the swarm moves on directly to the task re-allocation phase of the fallen agent.

Performance Tests

Hardware and software tests were designed to test the proposed workflow under different conditions. Experiment range and series were selected considering the range and variability required to effectively demonstrate performance [53]. Table 3 summarizes the primary objectives of each test, the map used, and the number of experimental flights performed. Overall, these tests represent a modular approach to developing and testing an SS-SAR framework for increasing the operational resiliency of a UAV swarm system.

TABLE 3
www.frontiersin.org

TABLE 3. Test observations and map used for the four performance tests.

Each performance test was associated with a map, as summarized in Table 3. The hardware tests were performed in maps M1 and M2, and the simulation tests were performed in maps M3 and M4. Table 4 outlines characteristics of the map environments used in the performance tests.

TABLE 4
www.frontiersin.org

TABLE 4. Map designations and properties.

The proposed framework is quite flexible regarding the agents that can be used. However, at minimum, lateral and downward vision sensors are required, along with either a GNSS module or capability for passive beacon georeferencing. Considering hardware and fly space limitations, an indoor location was used for hardware tests. The DJI EDU [50] UAV platform was chosen to perform hardware performance tests. These low-cost drones provide a basic environment for drone testing and flights. In the past, there have been multiple approaches to using Tello drones as platforms for singular and swarm development. The authors of [54] use Tello agents to demonstrate an automated swarm flight in a restricted flight space. A matrix formation control that uses Tello to display patterns was adopted in [55]. In [56], the DJI frame was used to build visionless sensing drones for obstacle avoidance and maze solving.

Related research such as this assisted in realizing the various limitations of the Tello platform during experiment design. The Tello agents are low-cost entry-level hardware and are intended for proof-of-concept experiments. Without a dedicated GNSS receiver, the agents rely on a VPS using the downward-facing camera module to localize using ground planes and additional GCPs. All recorded video and image data is streamed in real-time to ground control without storage and post-processing ability. While these constraints prevent executing a full-scale framework representation on these agents, our experiments modify the complete framework based on its modular structure. This modular and stepwise process permits testing smaller decision statements using simple Tello agents. Table 5 contains manufacturer-provided specifications for the DJI drones. These specifications have been referenced from online user manuals [50].

TABLE 5
www.frontiersin.org

TABLE 5. DJI TELLO EDU spec sheet.

Hardware Performance Tests

A modular and stepwise process was developed to test individual decision statements of the proposed SAR framework using simple Tello EDU agents. The objective of PT1 was to evaluate the time to distress, time to rescue, log any collision occurrence, and perform a battery level check. In PT1, two DJI agents were used as a part of the same swarm, with a rescue agent on active standby. A 2D visualization of M1 with initial agent positions and other mission information is shown in Figure 5.

FIGURE 5
www.frontiersin.org

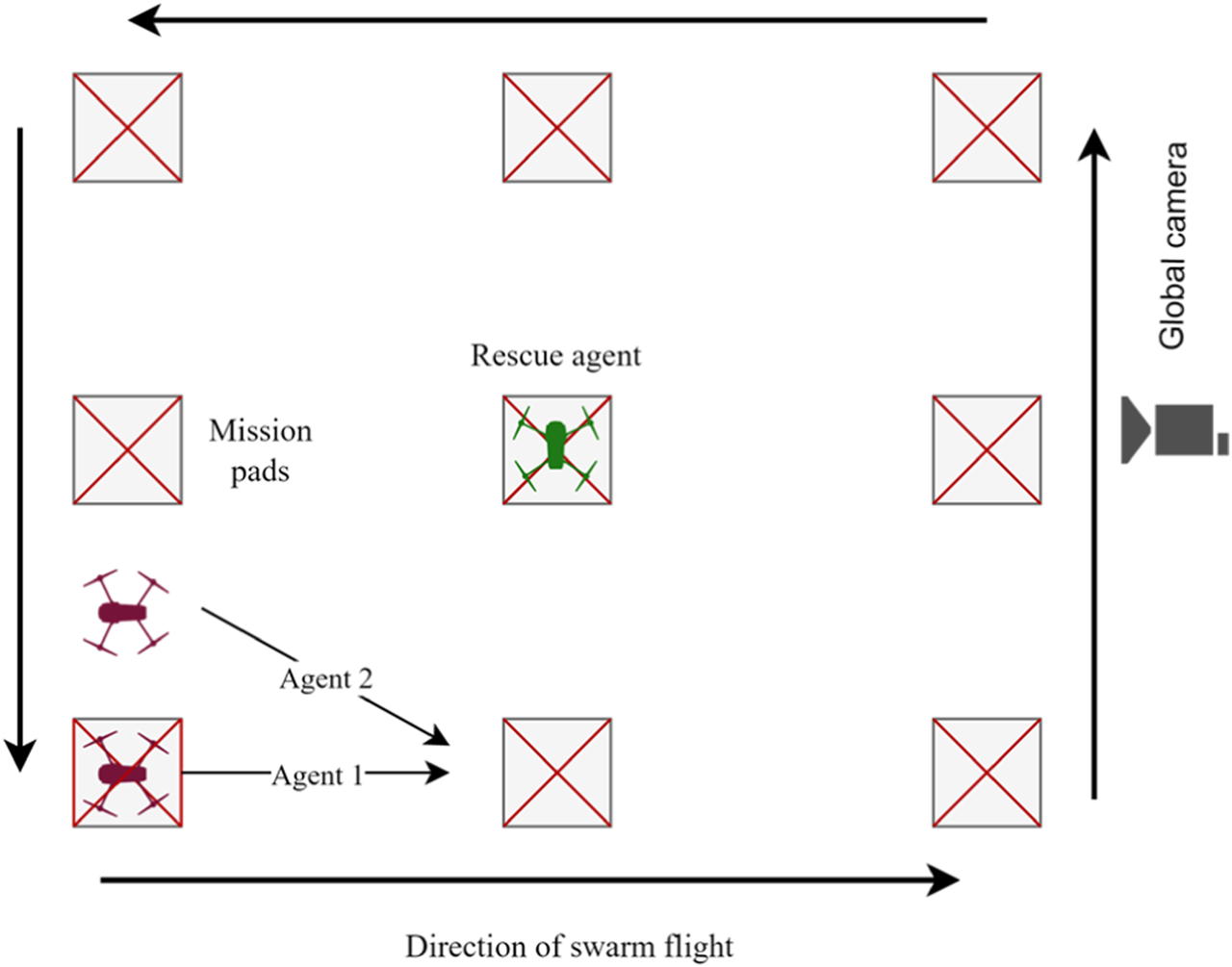

FIGURE 5. 2D representation of M1 space.

One of the agents moving along the mission pads was forced to switch off its VPS to emulate a disruption condition. Meanwhile, the rescue agent was on active standby in the center of the mission area (Figure 6, left) and could take off once the distressed agent did not send an expected HBS (Figure 6, right). Using mission pad information transmitted by the distressed agent before it faced disruption, the rescue agent located the fallen agent (Figure 7, left), conducted pose checks, and sent rcm messages to the distressed agent. If the distressed agent received the messages, it switched on its VPS, allowing it to rejoin the swarm. The rescue agent then moved back to its deployment point to await the next distress event (Figure 7, right).

FIGURE 6
www.frontiersin.org

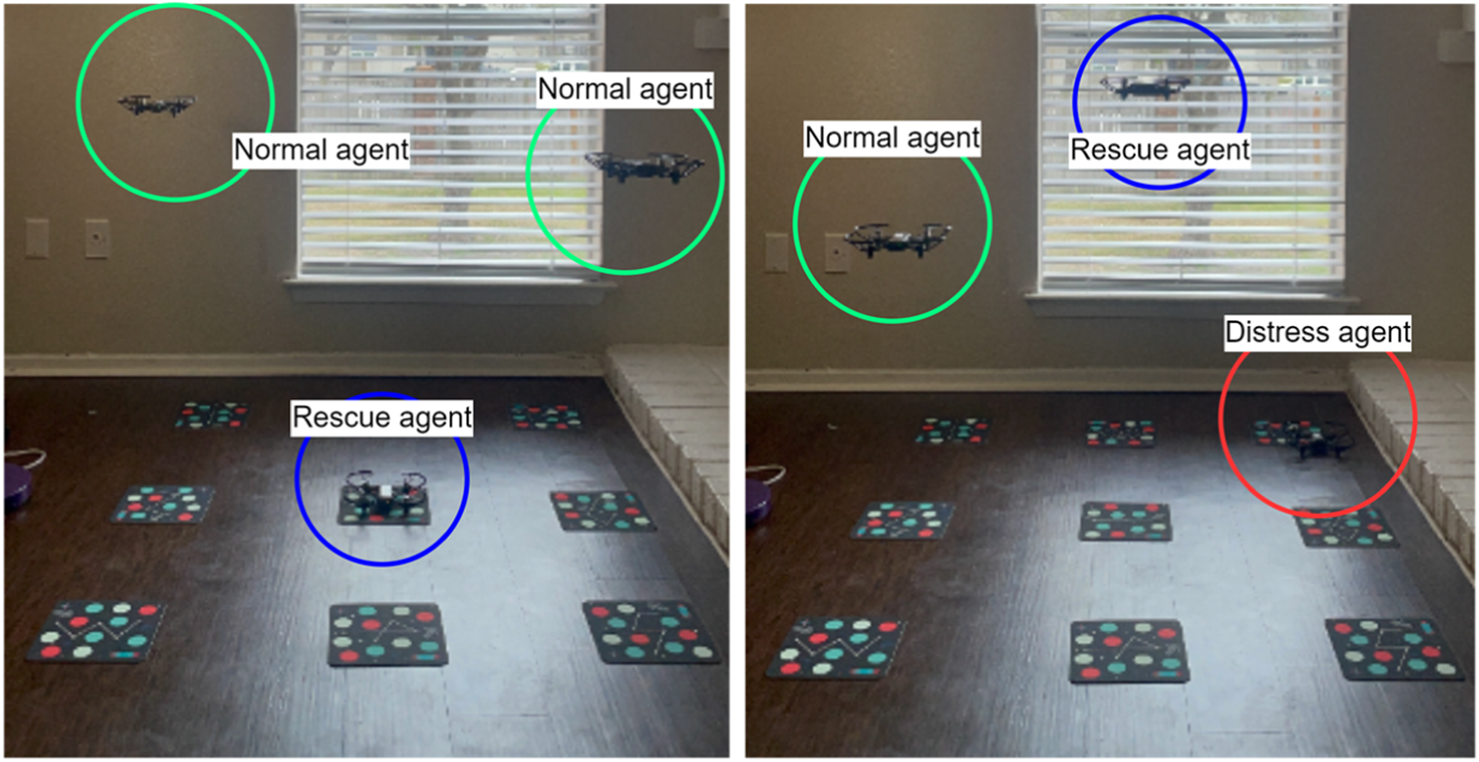

FIGURE 6. Preliminary framework test PT1 in the M1 space.

FIGURE 7
www.frontiersin.org

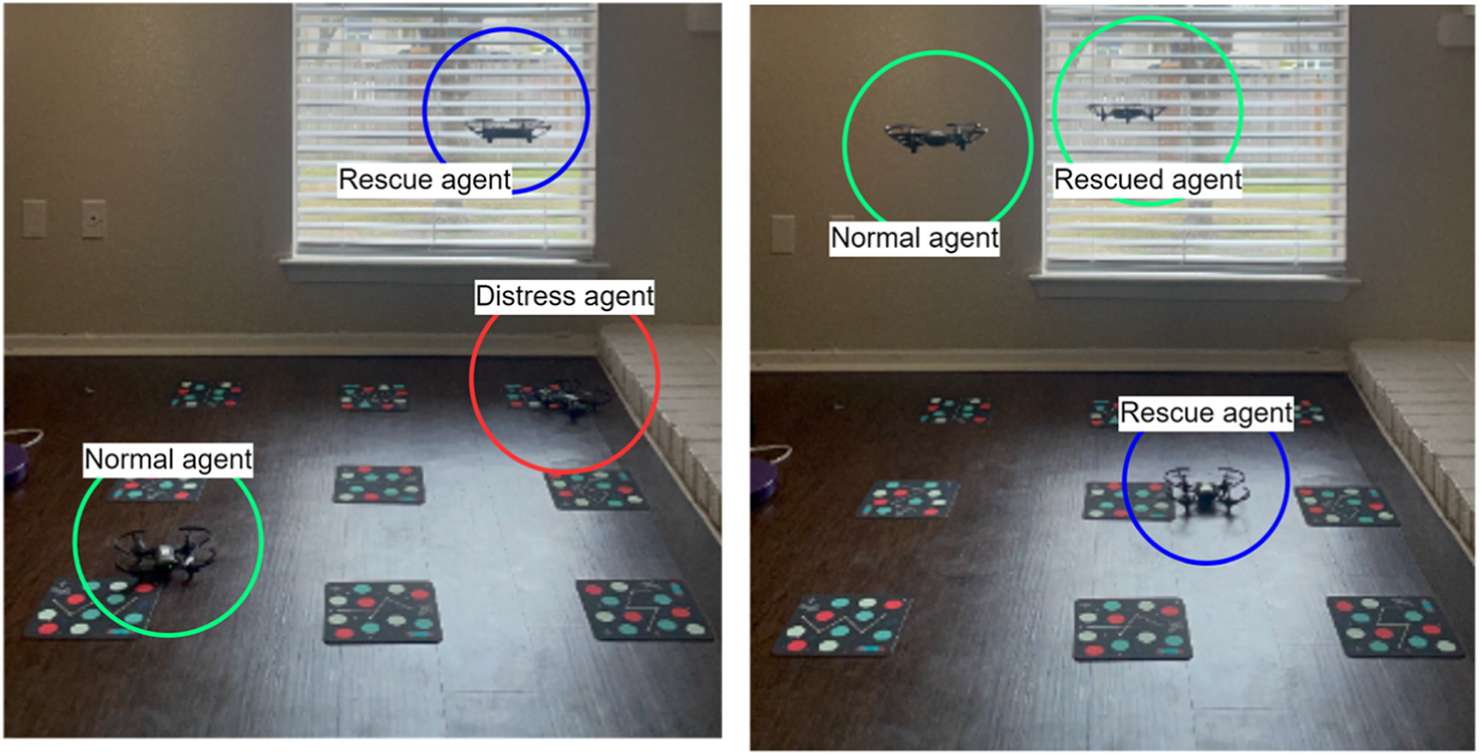

FIGURE 7. PT1 in the M1 space shows a swarm agent’s distress and recovery.

This performance test measured the time to distress, time to rescue and observed the number of collisions, rescue decisions, and the battery threshold value. The only pose check conducted to evaluate the blevel of the distressed agent.

PT2 again used two regular agents and one rescue agent on map M2. The objective of PT2 was to observe p1 and p2, and to attempt a recovery. A 2D top-down representation of M2 is in Figure 8. The number of GCPs could be increased or decreased with a maximum number of up to 20 GCPs placed in the fly space.

FIGURE 8
www.frontiersin.org

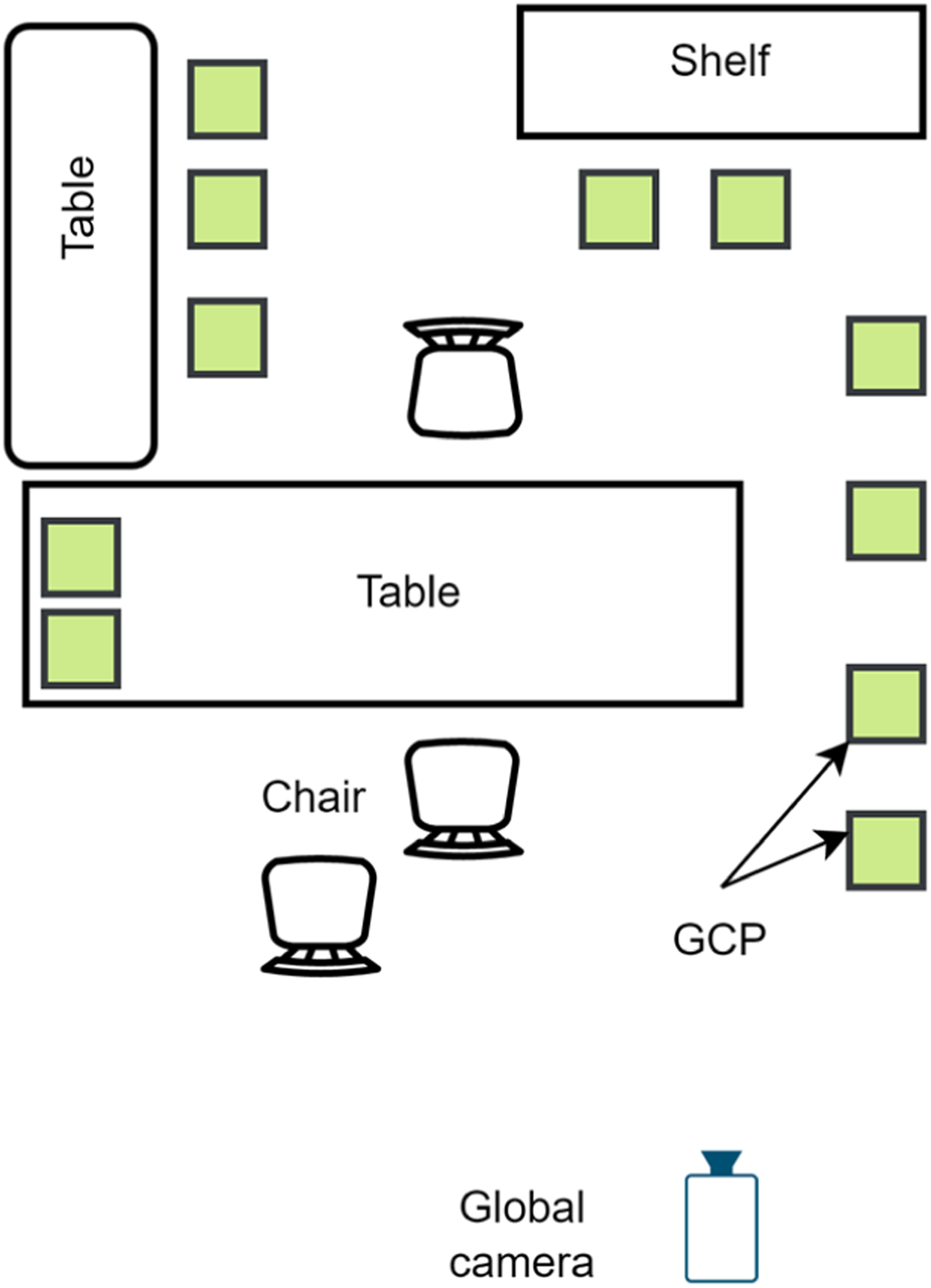

FIGURE 8. A 2D representation of the M2 map (Not to scale).

Figure 9 shows the M2 space where the three agents were released. The distress condition was simulated for one agent, where it landed behind the table. The rescue agent moved on location to conduct pose checks and begin recovery attempts. The distressed agent was not visible in the global view. However, various situations were observed using the rescue agent and p1. Figure 10 (top-right) shows the rescue agent’s POV, where the distressed agent fell at an oblique angle.

FIGURE 9
www.frontiersin.org

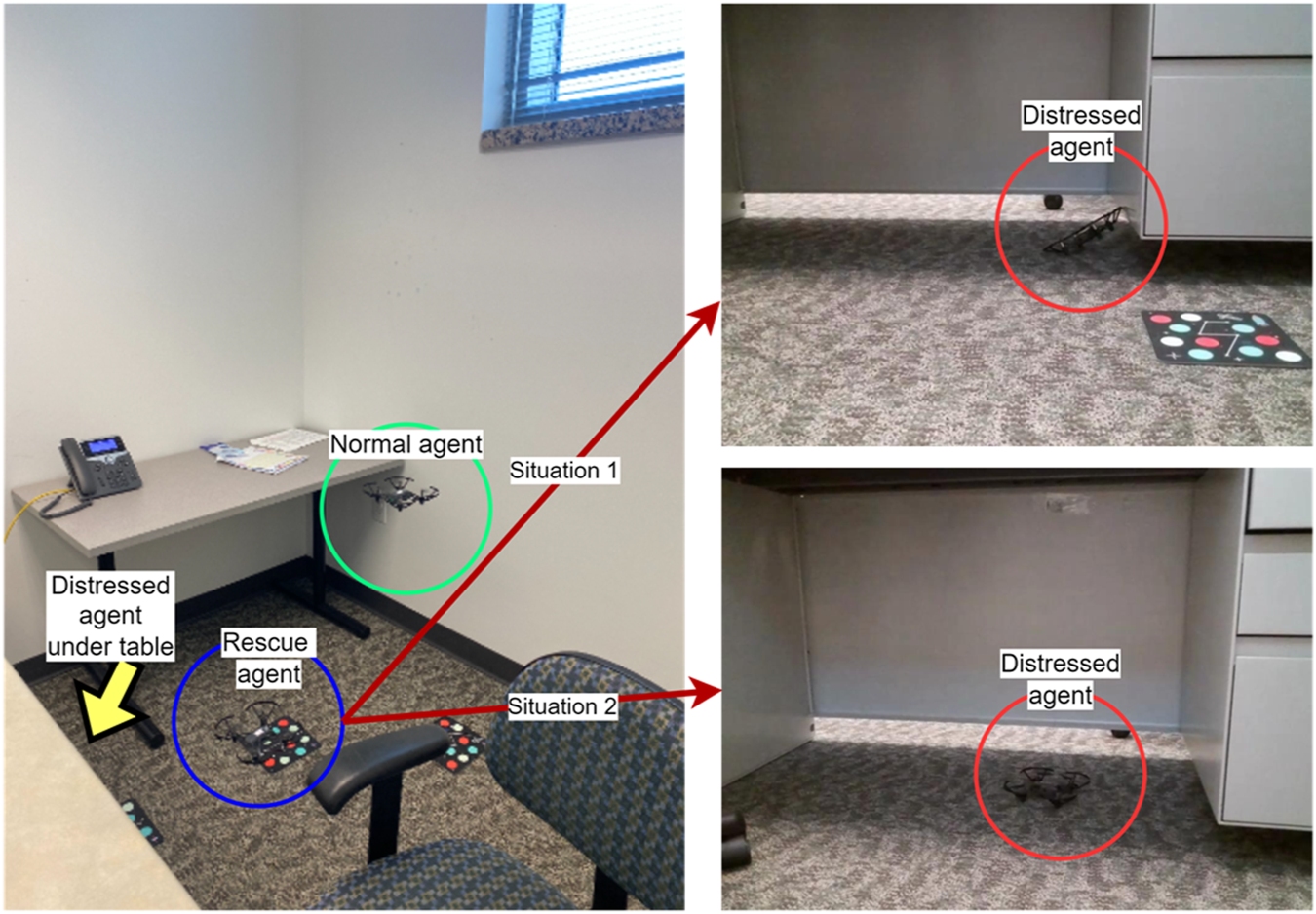

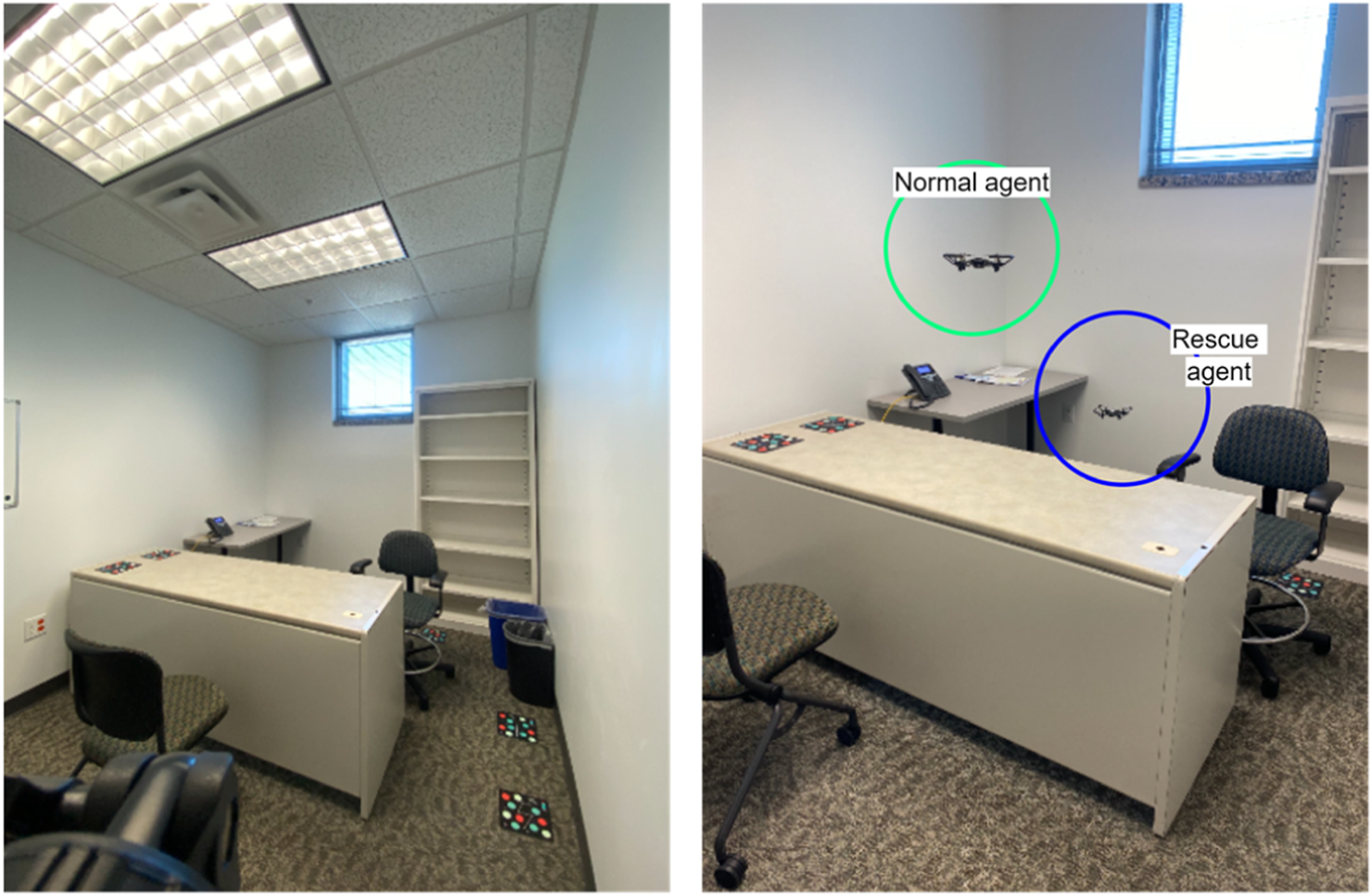

FIGURE 9. Real-world M2 space with 2 regular and one rescue agent for PT2.

FIGURE 10
www.frontiersin.org

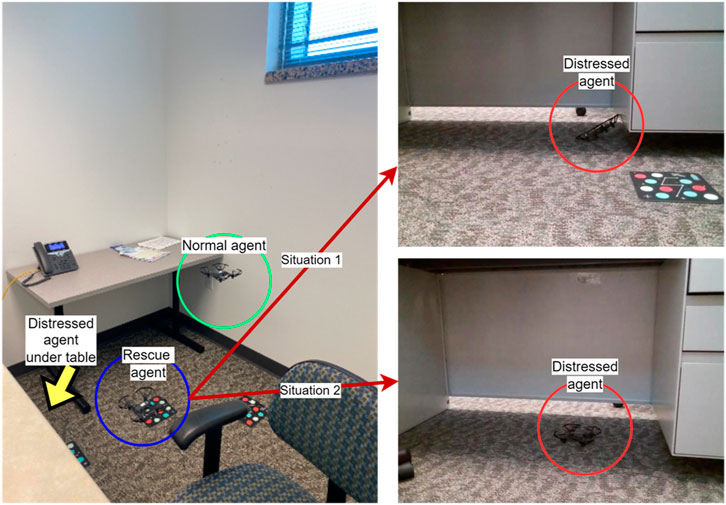

FIGURE 10. A Different global view of the M2 space and two floating views from the rescue agent’s POV.

Additionally, as the agent had strayed under the table, the height of the table prevented the agent from gaining the minimum altitude required to conduct a safe rejoin operation. This exemplifies how p1 helps understand the distressed agent’s situation. Figure 10 (bottom-right) shows a different situation where the agent has landed in a pose that could allow it to take off. However, its minimum altitude rejoin value was still greater than the obstacle dimensions. In both situations, the operator recommended that further recovery operations be terminated.

Figure 11 shows a third situation where the agent landed in a position from which it could take off, plus the right side figure shows the rescue agent’s POV from which the operator determined that obstacle dimensions did not impede the distressed agent’s safe rejoin procedure upon reconnection. In this situation, the operator recommended the framework to carry further rescue statements on the distressed agent.

FIGURE 11
www.frontiersin.org

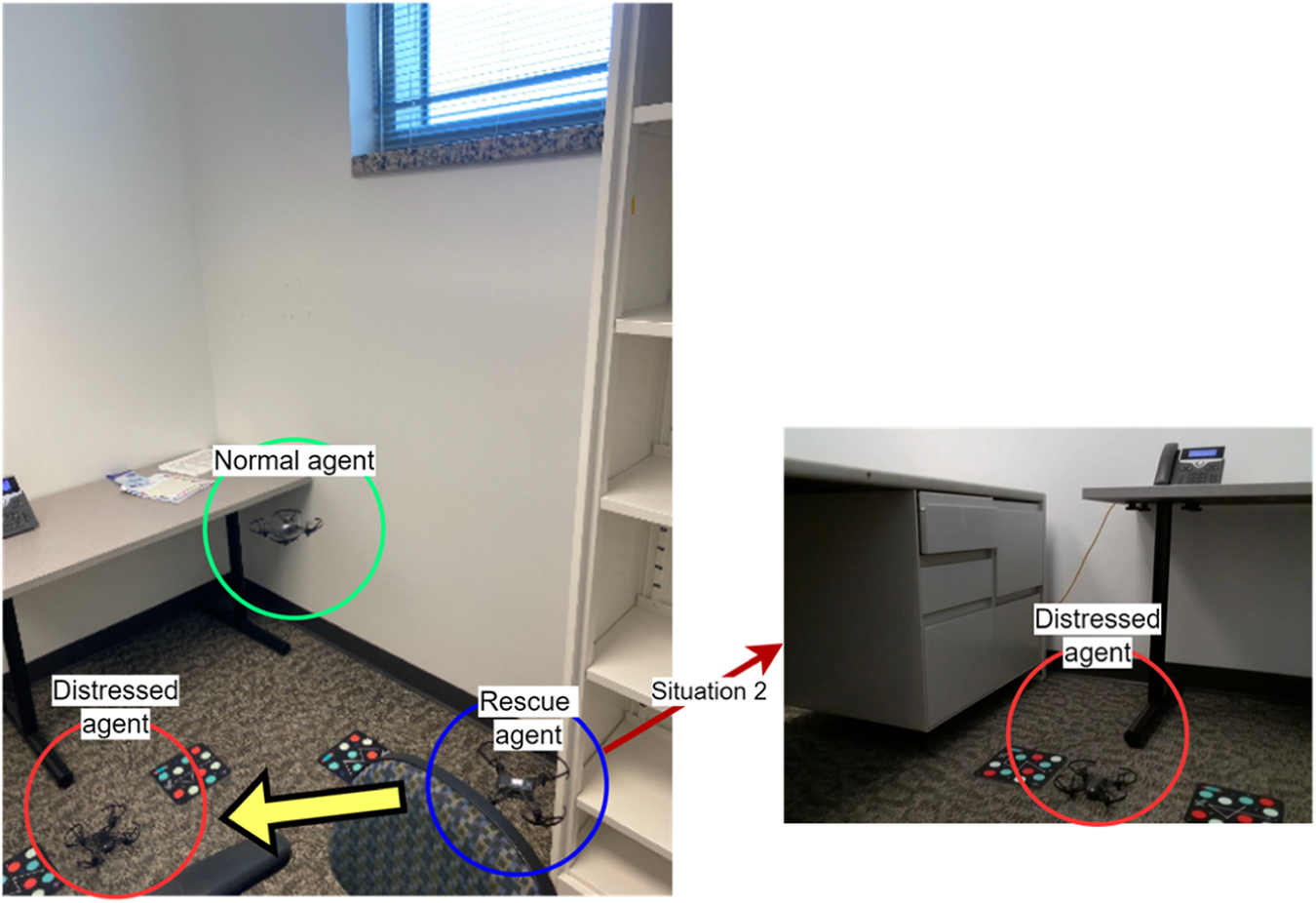

FIGURE 11. A scenario where p1 and p2 are successful on M2 during PT2.

Simulation Performance Tests

Indoor and outdoor scenarios to test the proposed framework were modeled in CoppeliaSim, formerly VREP [57]. Table 6 outlines the basic simulation parameters for PT3 and PT4. PT3 was a simulation experiment carried out on M3 (Figure 12A), which is a close recreation of the M2 space used in the hardware experiments. The primary purpose of PT3 was to evaluate p0, p1, and p2 and attempt a recovery.

TABLE 6
www.frontiersin.org

TABLE 6. Simulation parameters for PT3.

FIGURE 12
www.frontiersin.org

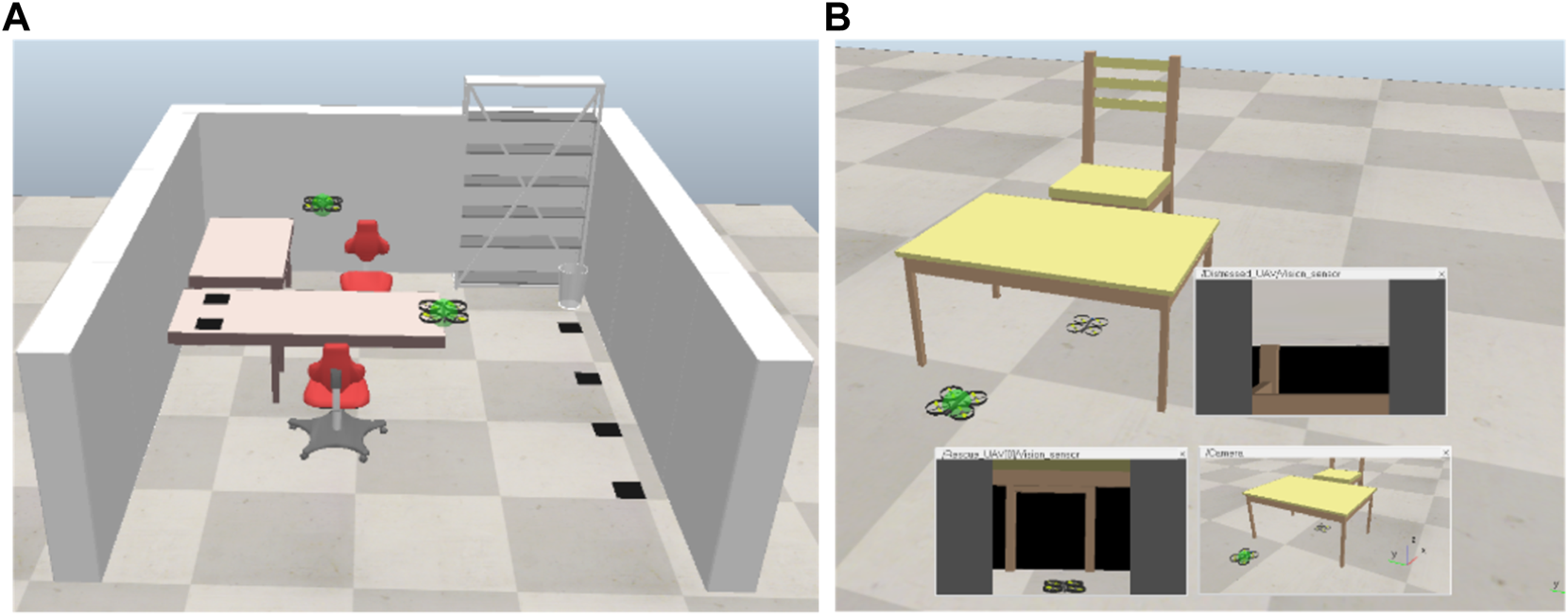

FIGURE 12. M3 map (A) and basic furniture (B) designs for PT3.

A simple table and chair environment are used to show a failed p1 and p2 scenario (Figure 12B). Pose check p1 used the agent vision sensor information to realize that the distressed agent failed in an inverted position. A normal decision cycle prevents the rescue agent from deploying on a failed p1; however, a forced p2 cycle using a rescue agent shows that the table dimensions would hinder a safe rejoin maneuver of the distressed agent even if the agent were not in an inverted position.

The primary purpose of PT4 was to evaluate p0, p1, and p2, observe time to distress, time to rescue, and log any collision occurrence. Table 7 outlines the basic simulation parameters for PT4. Figure 13 shows PT4 on M4, where pose checks p0, p1, and p2 were tested along with successful swarm rejoin scenarios. An abstract cube was placed in the field of view of the distressed agent to indicate its orientation for checking p0. The rescue agent was then used to determine p1 by observing the status of the distressed agent. Finally, a p2 test evaluated if the distressed agent sensed it could rejoin the swarm.

TABLE 7
www.frontiersin.org

TABLE 7. Simulation parameters for PT4.

FIGURE 13
www.frontiersin.org

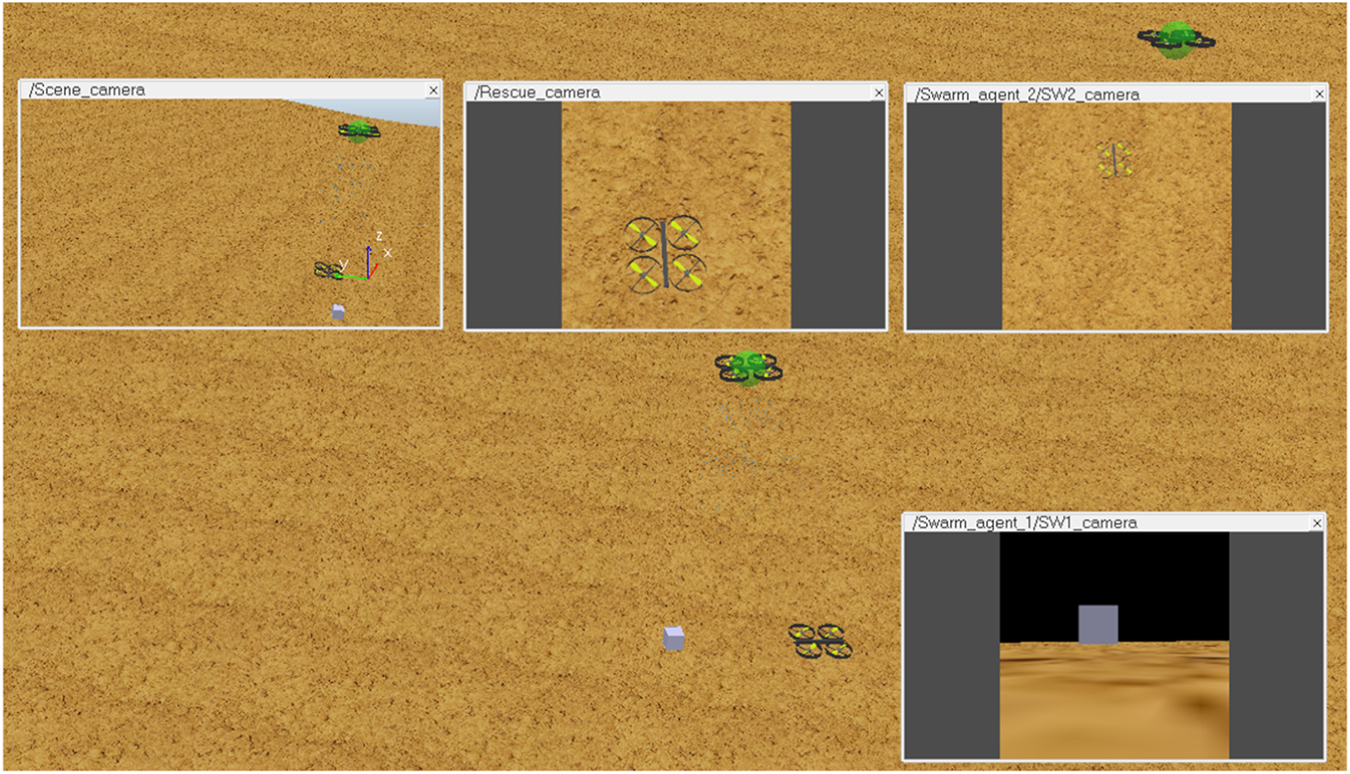

FIGURE 13. Preliminary M4 map with no obstacles and abstract cube for p0 checks.

Figure 14 shows an updated map where trees were present as obstacles that hindered agent progress and rejoin maneuvers. Here, multiple agents in the distress scenario were tested, where one agent landed in an inverted position and the other in a normal position. The rescue agent conducted a p2 check on both agents to determine which agent could be safely recovered. Floating view windows in the figure show p1 checks by both agents and a p2 check by the rescue agent on one of the distressed agents.

FIGURE 14
www.frontiersin.org

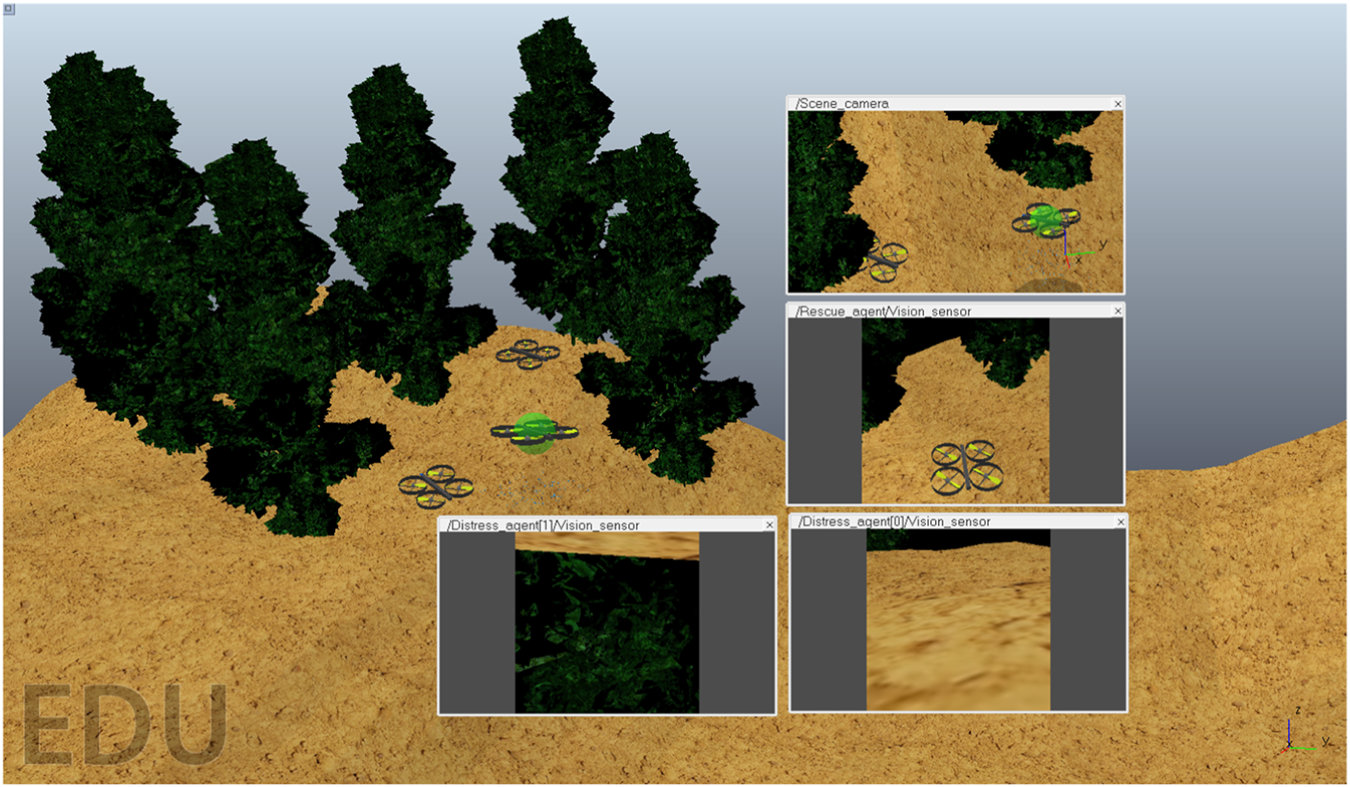

FIGURE 14. M4 map with outdoor terrain and tree obstacles.

Results

The following section highlights observations recorded during each performance test and their analysis. Figure 15 shows PT1 time to distress logs, the time when the agent first experienced an issue, and the time to rescue, which is the amount of time the rescue agent took to move to the position of the fallen agent and rescue it. Out of 15 flights, the rescue agent successfully rescues the distressed Tello agent nine times, as denoted by a green dot in Figure 15. A preliminary p2 check was performed using the available battery percentage when rcm was successful. The battery values are in Figure 16. If the battery value after successful reconnection was established between the Rescue and the distressed agent was below the given threshold (50%), the distressed agent was deemed incapable of rejoining the swarm. This was observed during flights 5, 7, 12, and 14. Each flight was independent, and the battery was charged to maximum capacity before each flight. Collision occurrence was counted when the rescue agent experienced collision at any time during the rescue process. As such, those flights were recorded as an unsuccessful recovery. During flights 4 and 10, the rescue agent experienced a collision and could not recover the fallen agent successfully; these flights were logged as failures. It was observed that close interaction with swarm agents in the constrained airspace caused unpredictable drifts in agent movement due to induced airflow, resulting in collisions and crashes. Overall, a recovery rate of 60% was thus calculated for PT1.

FIGURE 15
www.frontiersin.org

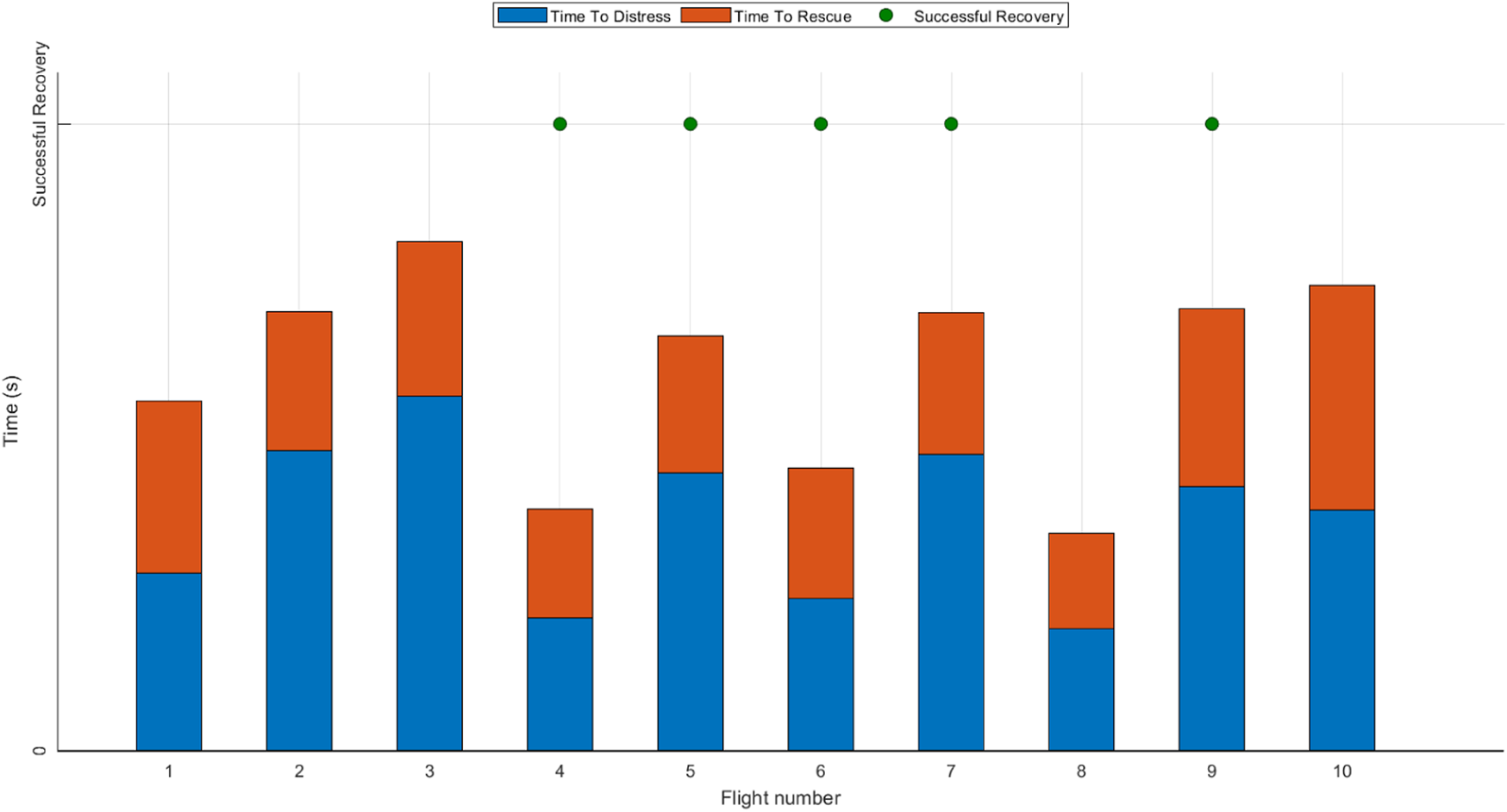

FIGURE 15. PT1 time to distress and time to rescue with successful recovery decisions.

FIGURE 16
www.frontiersin.org

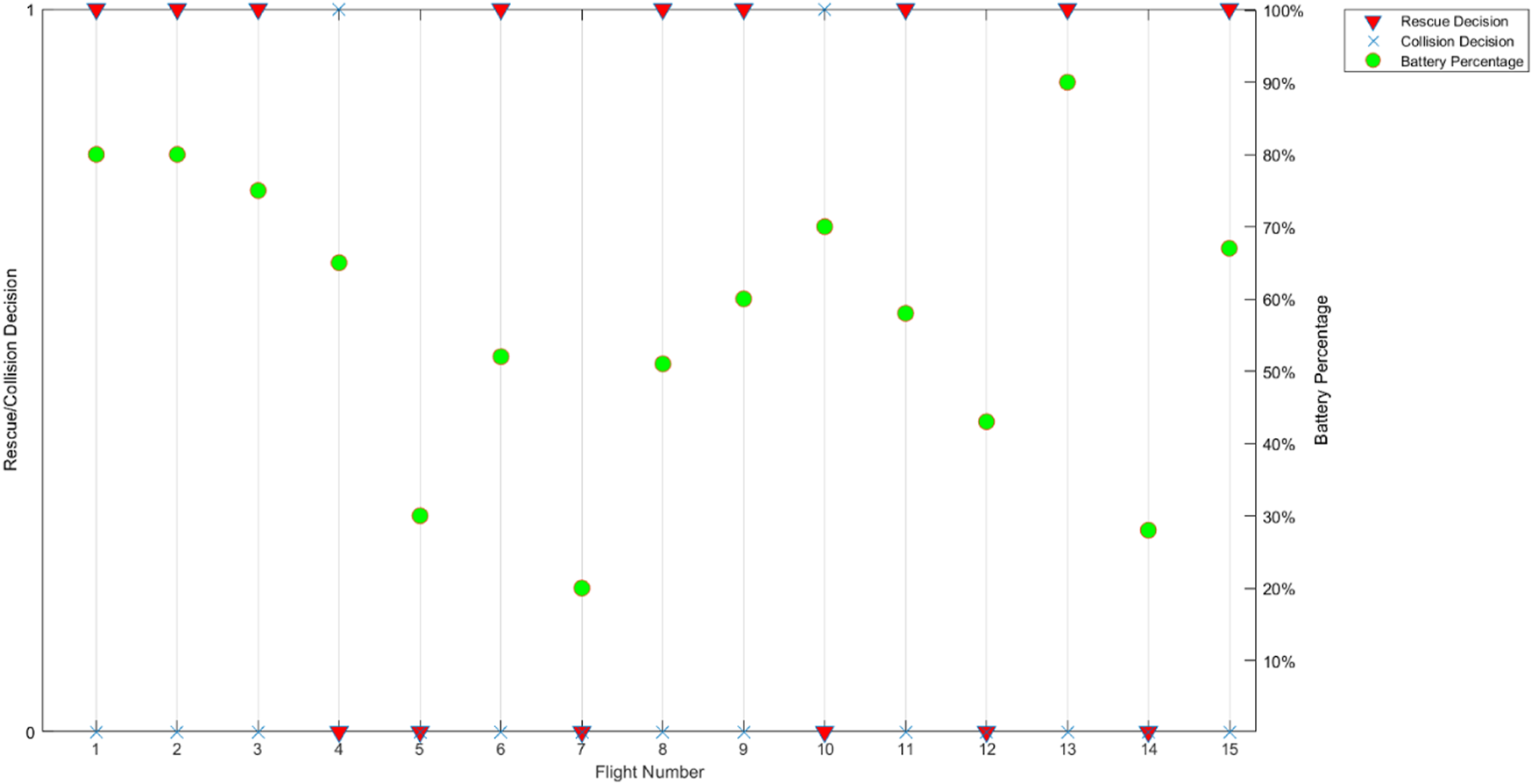

FIGURE 16. PT1 rescue decision and collision occurrence plotted with battery percentage values.

Figure 17 shows PT2 performed on M2. For ten flights, p1 and p2 rescue decisions were recorded. This test aimed to observe these pose checks and how they affect agent recovery. Flights 4, 7, 8, and 9 showed a successful recovery. Flights 1 to 3 and 5 failed p1, where it was determined by the operator using the rescue agent that the fallen agent was not in a position from which it could safely take off. In M2, this scenario was due to indoor obstacles, such as furniture, that might prevent the agents’ safe take-off ability. In Flight 6, the agent passed p1, which denoted it was in an orientation and position that could enable safe take-off; however, it failed real-time pose check p2. For flight 10, both p1 and p2 were successful. However, the agent could not take off due to an internal malfunction. A success rate of 40% for PT2 was observed.

FIGURE 17
www.frontiersin.org

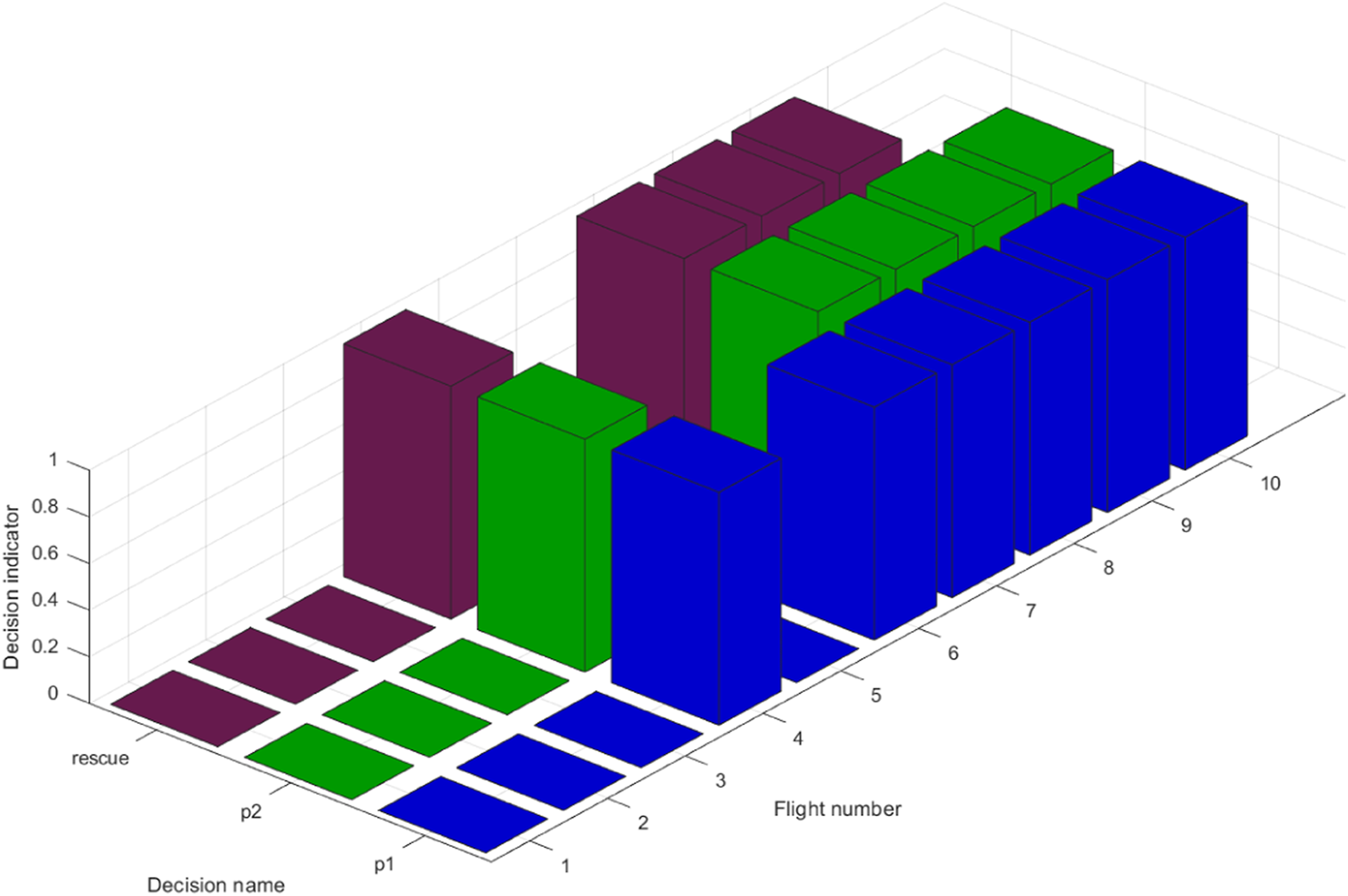

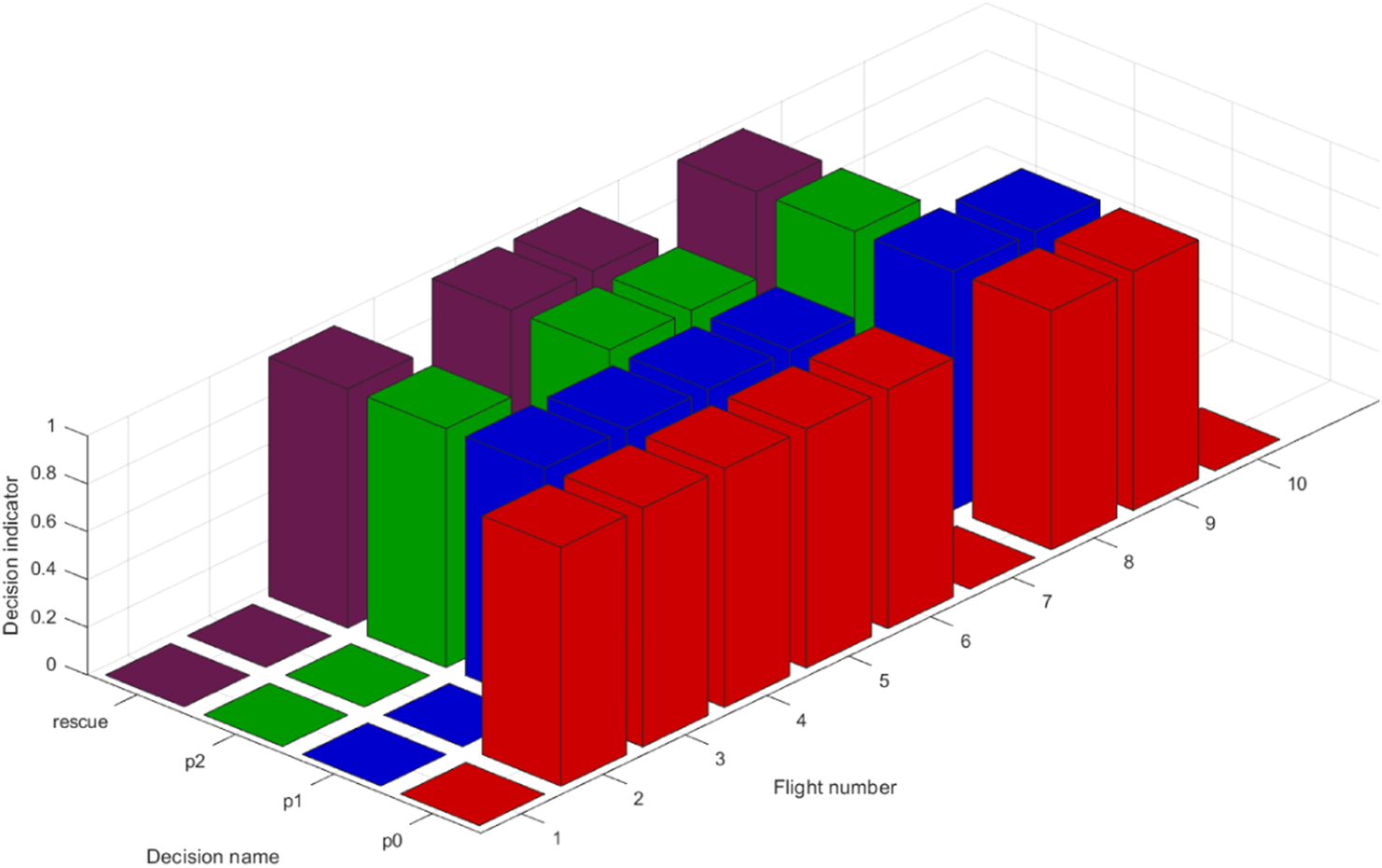

FIGURE 17. PT2 pose checks and rescue decisions.

In addition to previous pose checks, PT3 on M3 also performed preliminary pose check p0 on the agents using the distressed agent’s onboard vision sensor, as shown in Figure 12. Figure 18 presents the ten flights performed. Flights 3, 5, 6, and 8 successfully recovered the distressed agent. For flights 1, 7, and 10, the agent failed p0, indicating that the agent was not in a position to take off safely. As a result of the preliminary pose check failing, the rescue agent was not deployed to conduct further observations. In Flight 2, p0 passed. However, p1 failed, leading to a failed rescue attempt. In Flights 4 and 9, a successful p0 and p1 were observed. However, the agent failed real-time check p2 and was thus labeled unrecoverable. A success rate of 40% was observed for this test.

FIGURE 18
www.frontiersin.org

FIGURE 18. PT3 pose checks and Rescue decisions.

PT4 on M4 further examined an additional ten flights, and the results are shown in Figure 19, where time to distress logs the time a swarm agent experiences an issue, and time to rescue logs the time the rescue agent takes during rescue attempts. Flights 4, 5, 6, 7, and 9 showed the rescue agent’s successful recovery of the distressed agent.

FIGURE 19
www.frontiersin.org

FIGURE 19. PT4 time to distress and time to rescue with successful recovery decisions.

Further examination of operational parameters, as shown in Figure 20, gives additional failure information. In flights 1, 8, and 10, the distressed agent passed p0, which denoted its orientation passed requirements for safe rejoin. However, p1 failed. Since PT4 was performed on an outdoor terrain map that included tree obstacles, the primary reason for p1 to fail was the tress obstructing safe rejoin maneuvers. In-flight 2, the distressed agent failed to p0 itself, as denoted by the onboard sensor that gave information regarding its orientation and crash position. The floating window views in Figure 14 for the distressed agent one vision sensor FOV show an example of an agent that has landed upside down. The inverted image shows the ground above and tree foliage below. In flight 3, the distressed agent passed all required pose checks; however, a collision with the rescue agent resulted in a failed attempt. Overall, a success rate of 50% was observed. A summary of success rates for all performance tests is shown in Figure 21.

FIGURE 20
www.frontiersin.org

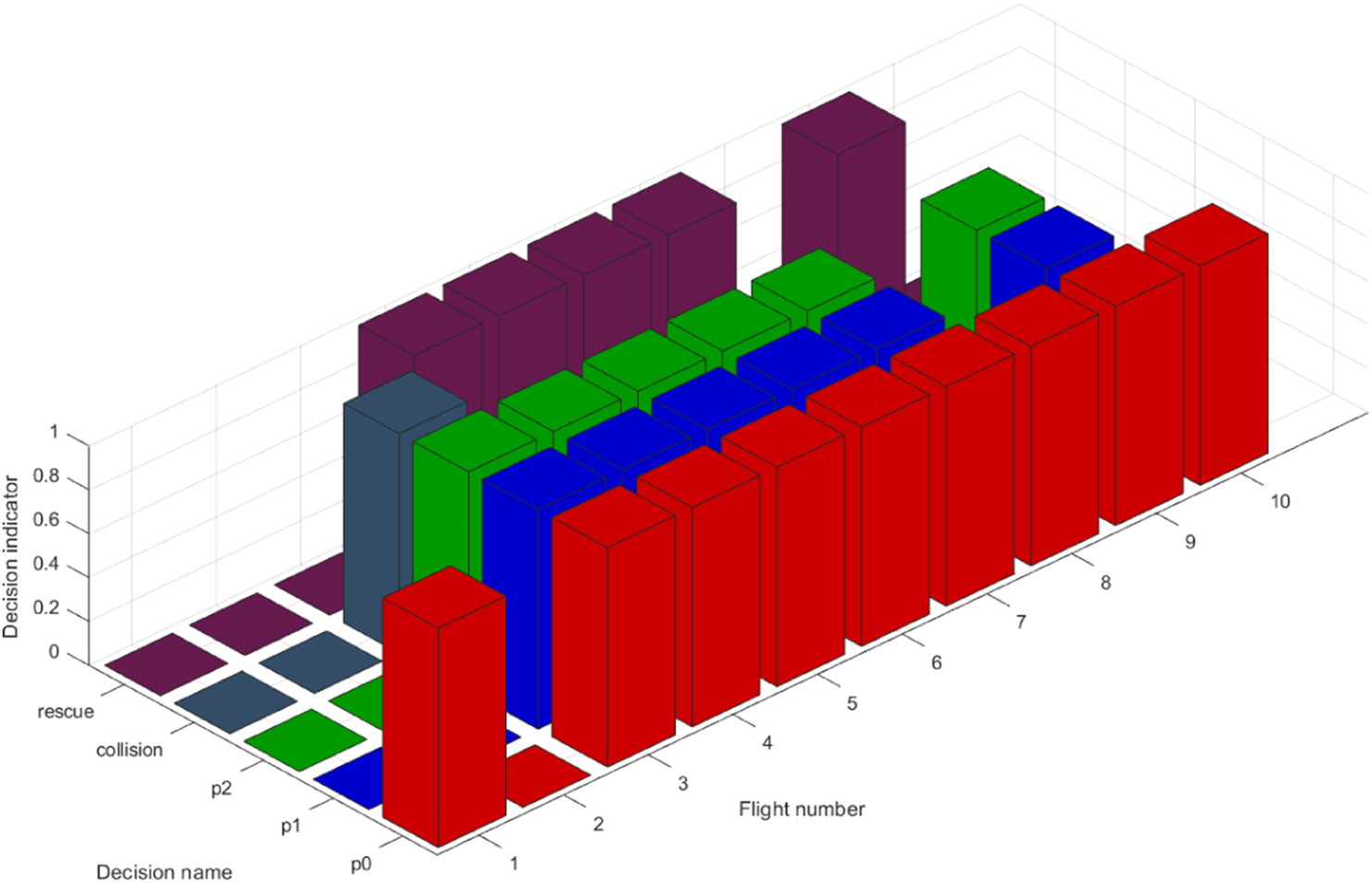

FIGURE 20. PT4 pose checks and rescue decisions.

FIGURE 21
www.frontiersin.org

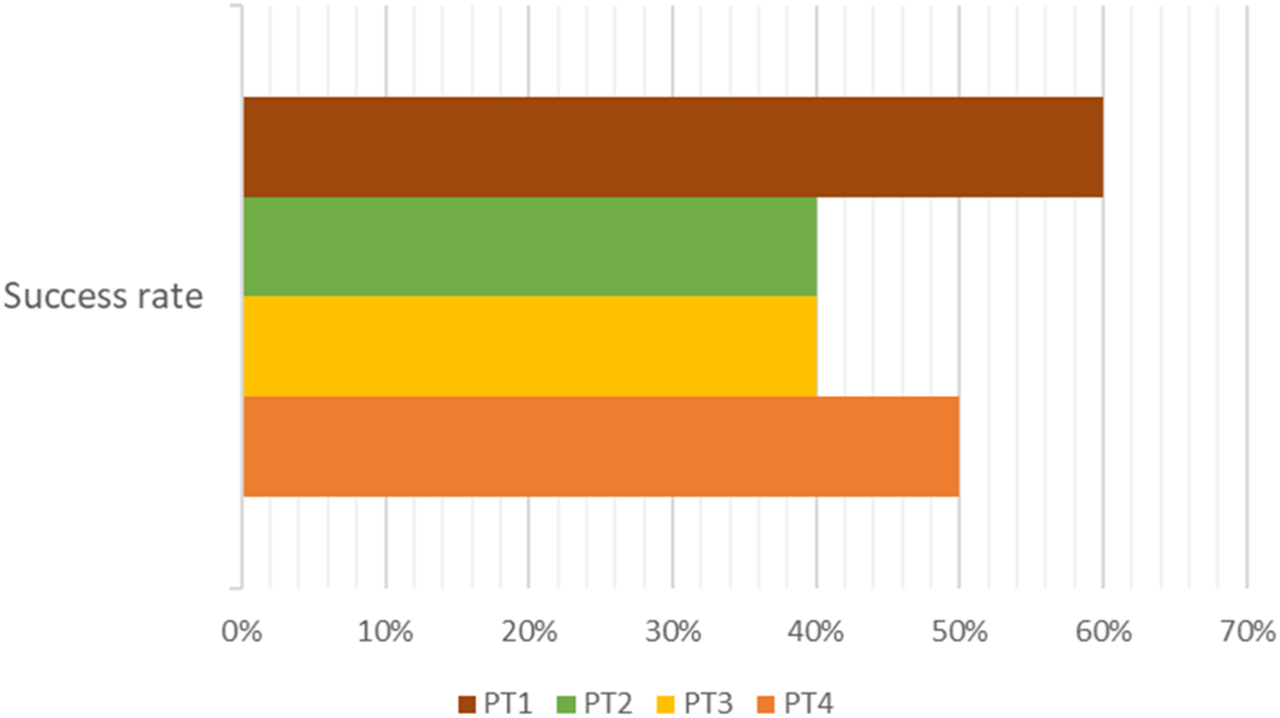

FIGURE 21. Summary of PT results.

A test on a sparse block map depicted in Figure 22 was used to log agent loss and recovery incidents. Every distress signal was mapped as a triangle or square in that process. The triangles indicate agent loss due to network issues, and the squares indicate agent loss due to collision. Red shapes indicate an unsuccessful attempt at recovery, and blue shapes indicate successful agent recovery. Each shape is the result of a separate flight, and consecutive flights did not have prior risk zone information. However, creating such risk zones can then be used as future input parameters to create safe flight paths. For example, if an area sees increased collisions due to dense obstacle geometry, a threat area can be modeled where agents entering that area do not venture below a preset altitude to avoid collisions. If agents moving to a particular area lose connection with ground control, the next iteration framework run will adjust the upper bound distance between the agents, which defines the maximum distance between two agents based on SSIn. Adjusting the upper bounds will result in agents flying in close formation and using data hop pathways to connect to ground control and prevent agent loss due to network range limitations. Future work using this approach can demonstrate adaptability, robustness, and emergent behavior in the swarm based on simple governance rules.

FIGURE 22
www.frontiersin.org

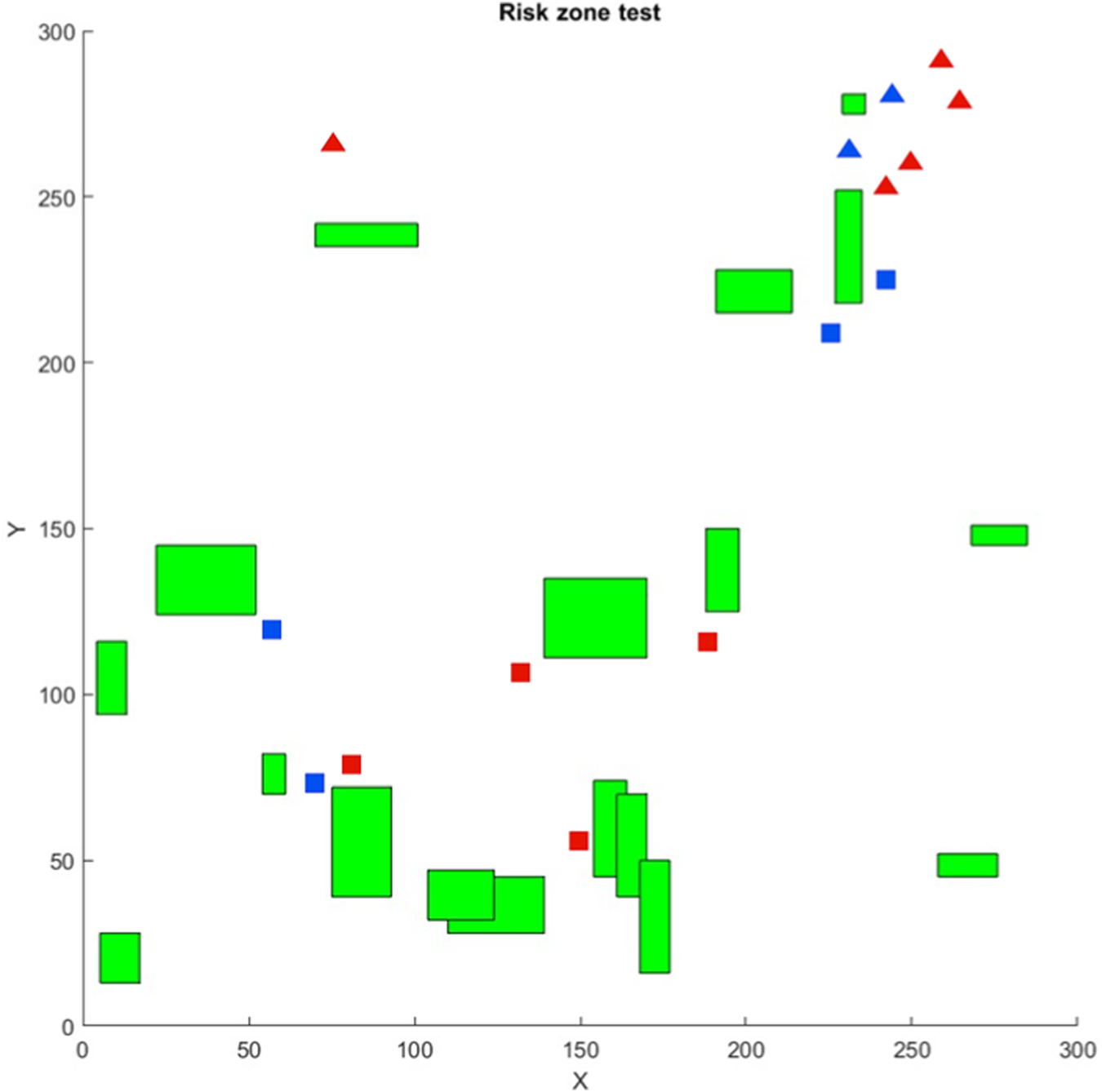

FIGURE 22. Incident log overlay on a generic map as inputs for future iterations.

Discussion and Future Research Directions

The proposed framework is a preliminary step in developing robust methodologies for evaluating swarm awareness toward the wellbeing of its constituent agents. This includes testing capabilities such as keeping track of each agent’s progress toward its task, realizing the occurrence of agents in distress, locating the distressed agents, and initiating rescue operations to enable them to rejoin the swarm. Several modifications could be implemented via the modular nature of the designed framework, as initiated by research directions summarized below.

It is crucial to consider the impact of emerging regulations on UAV operations, particularly the recent implementation of the FAA’s Remote Identification (RID) rule [58]. This regulation mandates the use of Remote Identification modules on certain UAVs, allowing for the open broadcast and identification of these agents during flight. This rule ensures safer airspace and promotes regulated use of UAVs, UAV swarms, and their applications [59]. When integrated into our rescue framework, the potential for such information can significantly enhance tracking and rescue performance. By leveraging the real-time identification capabilities provided by RID, it is foreseen that such frameworks can precisely locate and rescue other agents within the swarm more effectively, thus bolstering the overall efficiency and reliability of the proposed UAV rescue mechanism. Furthermore, exploring the compatibility and interoperability of our rescue system with other upcoming regulatory frameworks will be essential in ensuring the seamless integration and widespread adoption of our research in real-world UAV swarm applications.

Currently, some sections of the framework involve human decision-making. Most notable is the analysis of the distressed agent pose data transmitted by the rescue agent. The human operator observes the images to create a preliminary decision on the fallen agent’s possibility of rejoining the swarm. The human in-loop component can be reduced by adding autonomous UAV detection capability that uses vision sensor data, deep learning, and image processing techniques. This is possible using approaches such as [60] that use agent vision sensors for target analysis. An additional upgrade involves multiple agents to capture disruption and distressed agent information from different angles to gather a richer dataset.

A modified task re-allocation algorithm would enable additional agents to join the swarm and take up the interrupted task of the fallen agent or a re-allocation scheme for existing swarm agents to assume responsibility for the incomplete task. Resource allocation implementations such as in [6163] exist that could be implemented. Further experiments could be explored for loss rates in the same airspace with LiDAR (for obstacle detection) and preset waypoints in a map (using GNSS). This would expand the feature of the existing framework to create probability maps. While current risk zones were labeled using agent failure location data obtained from transmitted HBS, future experiments may include the presence of VRRZ. This is the system’s ability to create variable radius risk zones. Each risk zone can have a variable radius, thus allowing the mapping of larger disruptive structures to be represented more accurately.

The above study uses agents with similar capabilities acting in the same operational space. Including a diverse range of agents identified by their differences in nature, hardware, or operational space introduces heterogeneity in the swarm. The impacts of such inclusion on the performance of SAR agents can also be explored. Some existing research investigates the possibility of using a swarm composed of heterogeneous agents for victim detection after a disaster [64]. Although their main goal was exploring how swarm heterogeneity can affect performance, they modeled a target search and rescue problem to study it. Their proposed technique differentiated between different agents and labeled them as heterogeneous using behavior trees. A positive correlation was produced between the swarm’s heterogenous capability and the time to search and rescue the target. A similar approach can be explored in the future, where differently abled robots are introduced in the swarm and are tasked with looking for swarm agents whose operations have been disrupted during mission progress. In the above experiments, all distressed agents were located on the ground. Thus, adding a UGV to track and locate the fallen agents to create an in-depth pose check analysis would be a logical step for further exploration. Several implementations of heterogeneous swarms exist, such as UAV-UGV collaboration [65], UAV-UWSV [29], and UAV-UGV-UWSV [66], demonstrating promise for more effective results than a single operational space swarm.

Intrusion detection systems can be implemented on the UAV network as a backend process. While IDSs are most prevalent on traditional networks to deter unwanted network access and activity, current lightweight versions have been shown to run reasonably well on MANET and FANET deployments with acceptable performance [19, 6770]. Various types of IDS are available depending on their makeup and method of detecting malicious entities [71]. IDS could detect external agents attempting to maliciously disturb swarm operations. Similar approaches could also address ground-based attempts to take over swarm networks. The possible advantage would be the existing periodically transmitted HBS signal that can be used as input to any IDS. Adding network transmission data from each agent in the HBS could be used to design either a rule-based or anomaly-based lightweight IDS, at the very least. In this way, the SAR framework could provide additional security features to the swarm using inherently built structures.

A different approach taken to designing robust behavior was observed as a way of defining reliability in systems. The methods used in this category implement preemptive strategies for maintenance, abort policies, or recovery actions. This alternative form of resilience integration calls for an independent study. However, the results of the brief survey conducted on it are summarized below. These methods can be viewed as possible implementations and upgrades to this proposed SS-SAR framework. Table 8 summarizes the examined work based on their development focus being broader systemic implementations or UAV swarm-focused.

TABLE 8
www.frontiersin.org

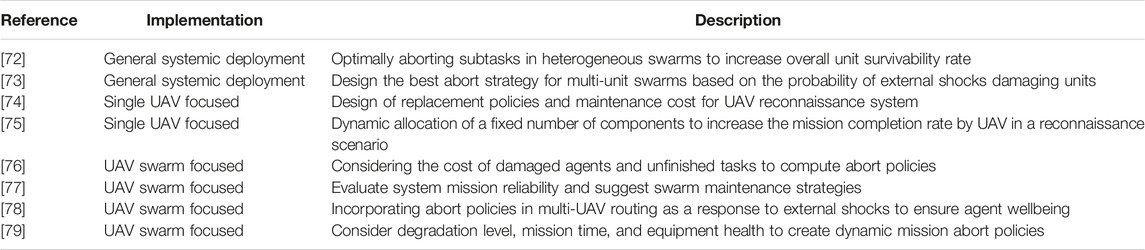

TABLE 8. Summary of recent work on optimal abort policies, task rescheduling, and dynamic risk assessment.

Conclusion

This research addresses gaps in current swarm resiliency research by addressing swarm-specific SAR rather than application-specific SAR. The approach was not to replace current SAR methodologies but to create an add-on that enables them to keep track of swarm agents while performing other functions. Modular experiments conducted on real-world hardware and simulations validated the need for, the possibility of, and the success rate of swarm-specific SAR approaches. While low-cost Tello drones were limited in their ability to handle a complete SS-SAR framework, they were crucial in testing the constituent process of the framework, such as reconnection protocols and pose check handlers. Simulation results provided a greater insight into how such frameworks can handle swarm agent loss. Experimental results prove that focusing on this approach to resiliency integration in multi-agent systems can produce the anticipated benefits. Recovery rates of distressed agents during and after the mission process increased drastically, especially in systems with no contingency rules. UAV swarms are complex and highly dynamic, making integrating resilience factors much more arduous. A system must exhibit awareness and diagnosis capability regarding its health before and after a disruption to efficiently produce solutions to mitigate said disruptions. This swarm-specific SAR framework is a crucial design step in that direction.
